Solinst Model 107 TLC Meter

Regular price $887.92 Unit price per
Shipping calculated at checkout.

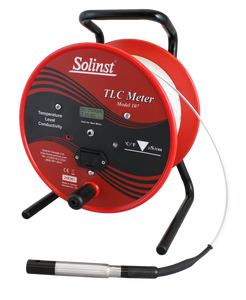

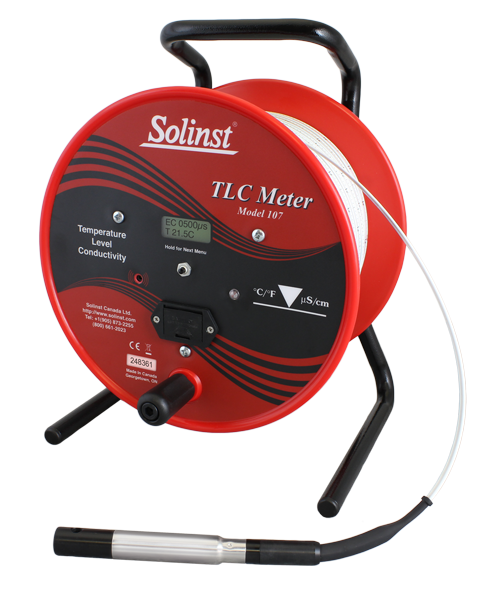

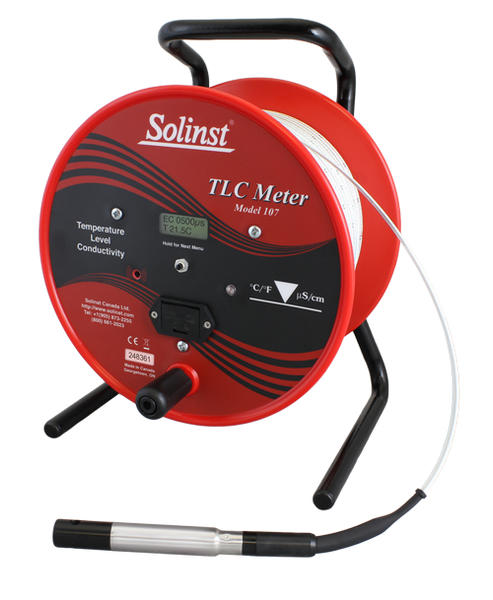

Solinst Model 107 TLC Meter

The TLC Meter is ideal for profiling conductivity and
 temperature in wells and open water. It displays accurate measurements of conductivity and temperature on a convenient LCD display.

Conductivity measurements are read from 0-80,000 µS/cm with readings giving accuracy of 5% of reading or 100 µS (which ever is greater).

Water level and probe depth measurements are read off the Solinst durable PVDF flat tape, which is accurately laser marked every 1/100 ft or each millimeter. Tape lengths are now available up to 1000 ft (300 m).

For automated water level, temperature, and conductivity datalogging, Solinst also offers the LTC Levelogger Edge. (See Model 3001 LTC Levelogger Edge)

Conductivity Made Easy

• Tape lengths to 1000 ft (300 m)

• Rugged Solinst reel and accurate PVDF laser marked tape

• Probe diameter 3/4" (19 mm)

• Standard 9V alkaline battery gives 90 hrs. of use

• Auto-Off after 8 minutes

Rugged PVDF Flat Tape

The high quality PVDF flat tape reels smoothly, remains flexible and hangs straight in the well, irrespective of temperature. The flat tape is mounted on a sturdy, well-balanced Solinst reel, with a convenient battery drawer for the 9 Volt alkaline battery. Permanent laser markings each 1/100 ft or millimeter allow accurate readings.

Stranded stainless steel conductors and copper coated steel conductors resist corrosion, provide strength and are nonstretch. They make the tape easy to repair and splice. The dogbone design reduces adherence to wet surfaces.

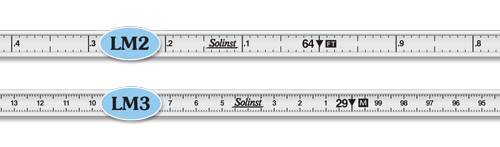

LM2: Each 1/100 ft, 1/10 ft and ft

LM3: Each mm, cm and m

Lengths: 100 ft, 200 ft, 300 ft, 500 ft, 750 ft, 1000 ft  (30 m, 60 m, 100 m, 150 m, 250 m, 300 m)

114791          107 TLC (Temp/Level/Conductivity) Meter, LM3/100m

114792          107 TLC (Temp/Level/Conductivity) Meter, LM3/60m

114793          107 TLC (Temp/Level/Conductivity) Meter, LM3/30m

114794          107 TLC (Temp/Level/Conductivity) Meter, LM3/300ft

114795          107 TLC (Temp/Level/Conductivity) Meter, LM3/200ft

114796          107 TLC (Temp/Level/Conductivity) Meter, LM3/100ft

114800          107 TLC (Temp/Level/Conductivity) Meter, LM3/1000ft

114801          107 TLC (Temp/Level/Conductivity) Meter, LM3/750ft

114802          107 TLC (Temp/Level/Conductivity) Meter, LM3/500ft

114803          107 TLC (Temp/Level/Conductivity) Meter, LM3/300m

114804          107 TLC (Temp/Level/Conductivity) Meter, LM3/250m

114805          107 TLC (Temp/Level/Conductivity) Meter, LM3/150m

114809          107 TLC (Temp/Level/Conductivity) Meter, LM3/400m

114810          107 TLC (Temp/Level/Conductivity) Meter, LM3/1250ft



Water Conductivity Measurements

The TLC Meter uses a ‘smart’ conductivity sensor with platinum electrodes to measure conductivity. The conductivity is displayed on the screen along with the associated temperature measurement. The ‘smart probe’ displays conductivity that has been standardized to 25°C, i.e. Specific Conductance (displayed as EC). The conductance temperature coefficient is 2.0% per °C.

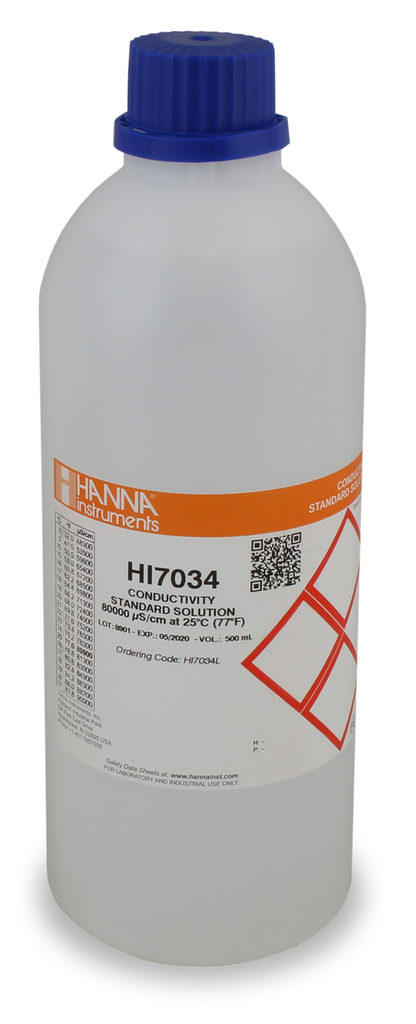

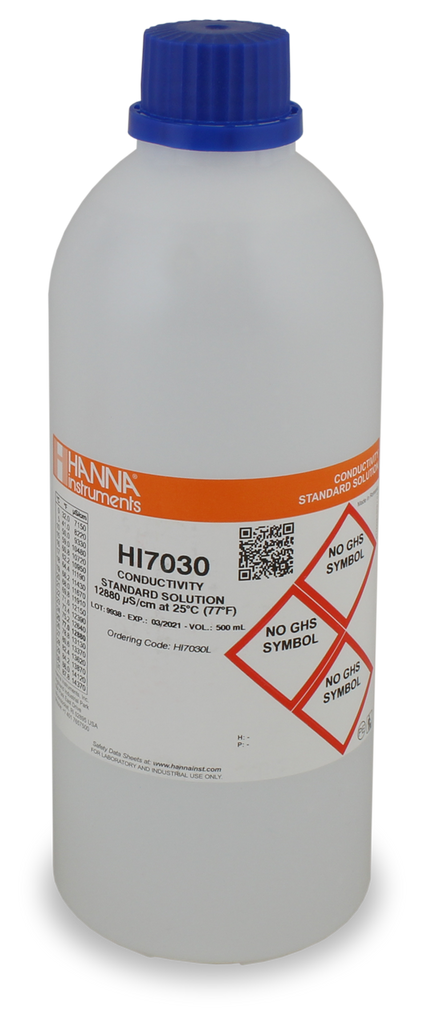

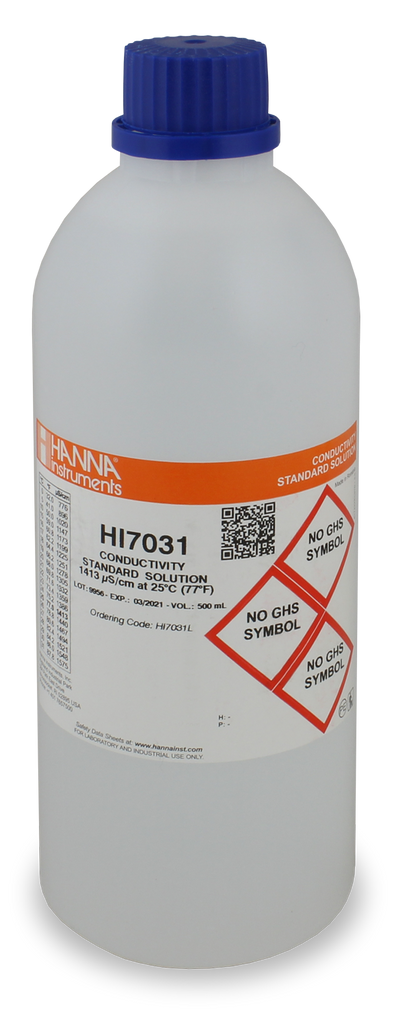

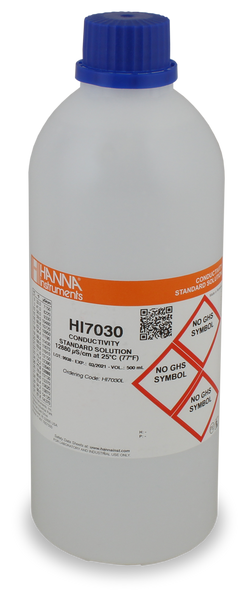

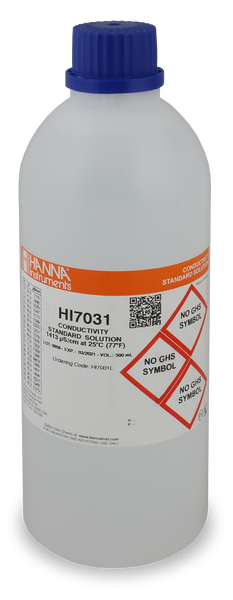

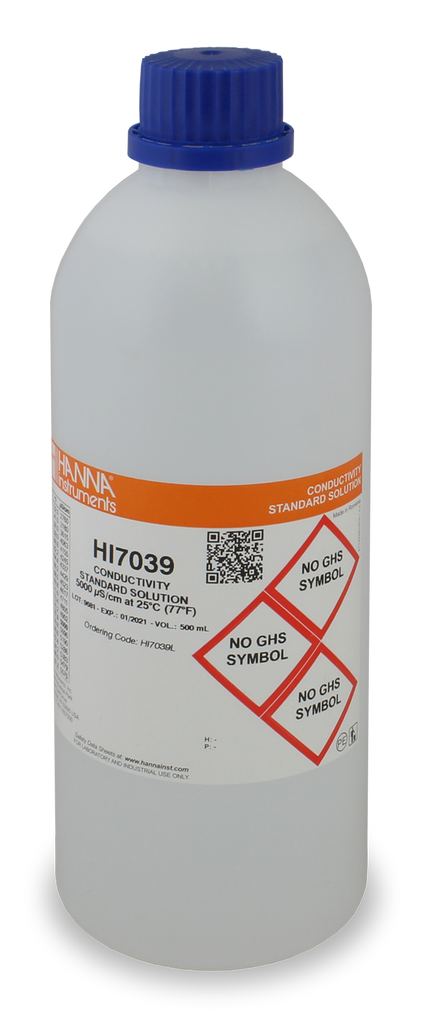

Calibration is simple, using 1413 µS, 5000 µS, 12,880 µS, and/or 80,000 µS solutions for 1, 2, 3, or 4 point manual conductivity calibrations.

Applications

• Profiling conductivity and temperature in wells and open water

• Salinity studies

• Saltwater intrusion investigations

• Testing for water quality impairments from road salt

• Tracer tests

• General indication of chemical contamination level

• Early warning of changes in water quality at: -  Landfills -  Industrial site

Water Level & Depth Measurements

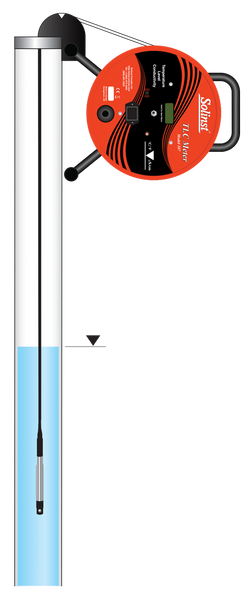

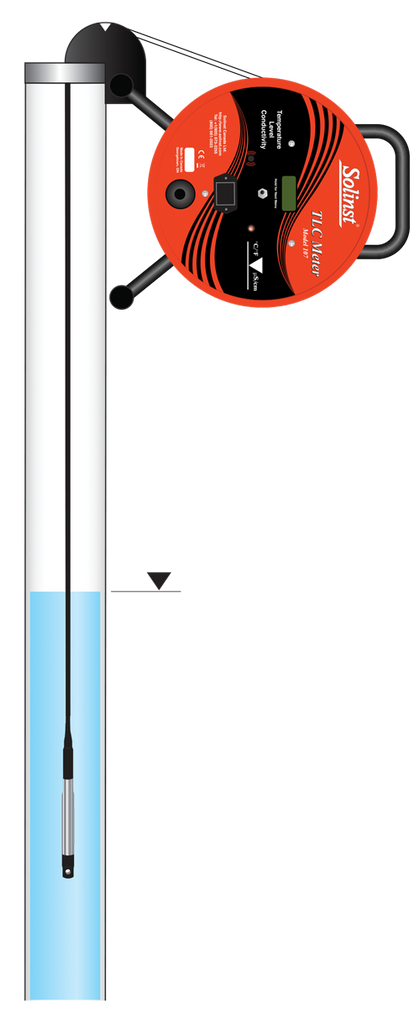

When the zero point of the probe enters water, an electric circuit is completed, briefly activating a buzzer and blanking out the screen for about 1 second.  The depth to water is then read off the tape.  When the TLC Meter is withdrawn from the water, a short buzz gives a warning that the probe is now out of water.

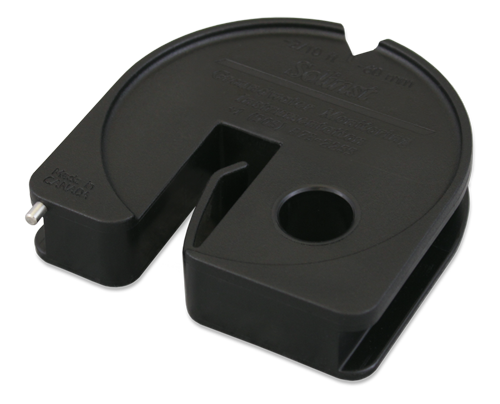

A Tape Guide/Datum allows the depth measurement to be read at the marked position on the Tape Guide, to give reliable, repeatable, accurate depth measurements when profiling a well. The Tape Guide protects the tape from damage on rough edges of well casing.

Water Temperature Measurements

The TLC Meter operates in a range from -15ºC to +50ºC (23ºF to 122ºF). You may choose to have the readings displayed on the LCD screen in ºC or ºF. Accuracy is +/- 0.2°C in Celsius, or +/- 0.4°F in Fahrenheit.  The ‘smart’ TLC probe automatically adjusts the measured conductivity values to display as specific conductance standardized to 25ºC.  This provides standardized, repeatably comparable measurements.

When the probe is turned on, the LCD screen displays both conductivity and temperature.

Conductivity & Temperature Display Menu

The display menu is simple to operate. When the unit is turned on, it will begin to display electrical conductivity and temperature readings, in or out of water. If the button is held down for
 2 seconds and released, the display moves to the next menu item. Press the button two times quickly in any given screen to achieve the displayed action.
