Heron DipperLog 64+
Heron Instruments Inc.’s water level meters are designed for well drillers, consultants, hydrogeologists and other groundwater professionals who require the most accurate measurements for their projects.
Heron water level meters are manufactured to be modular for easy cleaning and servicing. Each meter comes with a rugged protective case to store and easily transport your instrument.

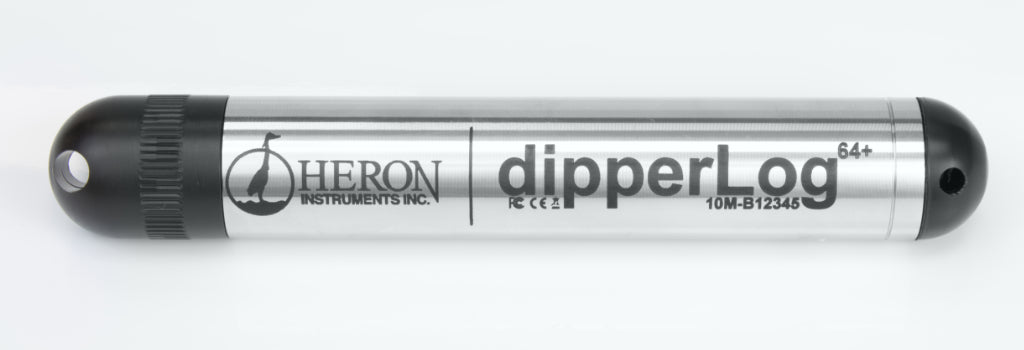

About The Heron DipperLog 64+
The Heron DipperLog 64+ is a highly accurate groundwater data logger used by hydrogeologists, hydrologists, environmental technicians, water well contractors and other groundwater professionals. The dipperLog 64+ is a reliable and cost effective solution to long and short term monitoring of groundwater levels and temperature in wells, boreholes and open bodies of water.
Features & Advantages of the Heron DipperLog 64+
- Memory – 64,000 data sets (depth and temperature of water)
- Download Speed – 64,000 data sets in 3 minutes (21,333.33 Sets/min)
- Battery – up to 10 years or 3,750,000 readings (depending on usage)
- Calibration Certificate with each logger
- Machined, 316 marine grade stainless steel body and transducer
- Able to convert deployment options easily in the field
Heron DipperLog 64+ Specifications
| Performance | |
| # of Data Points | 64,000 |
| Download Speed | 21,333.33 Data Sets/min (64,000 readings downloads in 3 minutes) |
| Water Level Accuracy (Typical) | +/- 0.05%FS (0°C to 50°C) |
| Temperature Accuracy (Typical) | +/- 0.5°C |
| Operating Features | |
| Pressure Ranges | 10m/30ft (14PSI), 30m/100ft (43PSI), 60m/200ft (85PSI), 120m/400ft (171PSI) |
| Overpressure Rating | 2X Factory Calibrated Range |
| Operating Temperature | -20°C to 80°C (-5°F to 175°F) |
| Pressure Resolution %FS | 0.001 |
| Expected Battery Life (Depending on Usage) | Up to 3,750,000 Readings ( Up to 10 Years) |
| Warranty | 2 Years |
| Physical Characteristics | |
| Wetted Material | 316 SS, Delrin®, Buna-N |
| O-Ring (Primary) | Buna-N |
| O-Ring (Backup) | Viton |
| Transducer | 316 SS Piezoresistive Silicon |
| Length | 145mm / 5.7” |
| Diameter | 22mm / 0.87” |
| Weight | 170g |
| Deployment Options | |
| Suspended | |

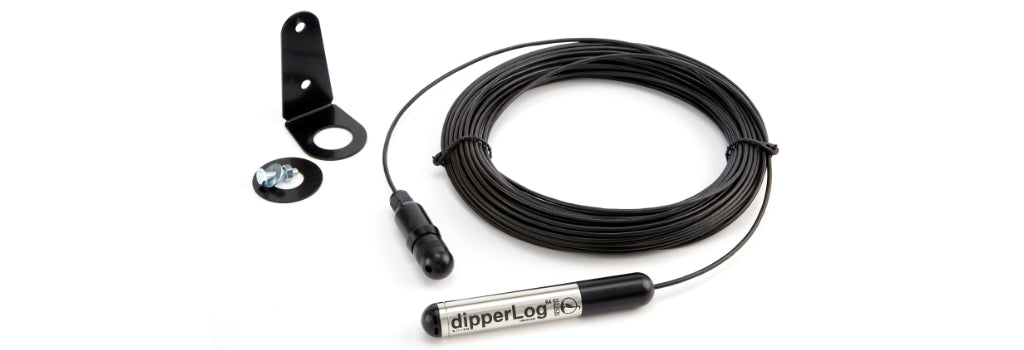

| Direct Read | |

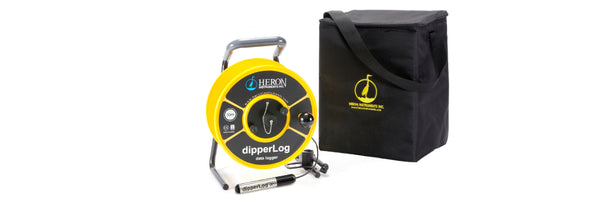

| Reel | |
| Note: | In "Log Time" mode the dipperLog increases the readings from 1 second by an additional 1 second for 255 readings. The final reading interval is 4 min. and 14 sec. and the logger then stops logging. This mode logs for a total of 9 hours before stopping. |
| Barometric Compensation | The first reading can be used for all readings unless a barLog is used. Automatic compensation when using a designated barLog. Manual compensation in Excel. |
| Direct Read Cable | 1/8" Polyurethane |
