Solinst Edge Levelogger 5
Solinst Edge Levelogger 5

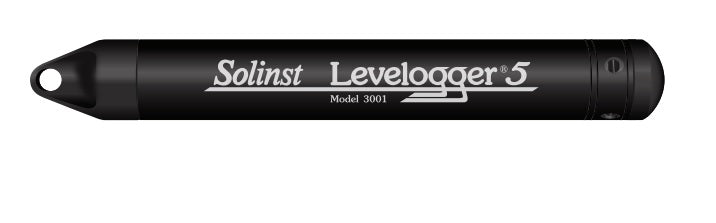

The Levelogger 5 records highly accurate groundwater and surface water level and temperature measurements. It combines a pressure sensor, temperature detector, 10-year lithium battery, and datalogger, sealed within a 22 mm x 160 mm (7/8" x 6.3") stainless steel housing with a corrosion-resistant coating baked-on using polymerization technology.
The Levelogger 5 measures absolute pressure using a Hastelloy® pressure sensor, offering high resolution and an accuracy of 0.05% FS. Readings are stable in extreme pressure and temperature conditions. The Hastelloy sensor can withstand 2 times over-pressure without permanent damage. Combined with the durable coating inside and out, the Levelogger 5 has high corrosion and abrasion resistance in harsh environments.
The Levelogger 5 uses a Faraday cage design, which protects against power surges or electrical spikes caused by lightning. Its durable maintenance-free design, high accuracy and stability, make the Levelogger 5 the most reliable instrument for long-term, continuous water level recording.
• Aquifer characterization: pumping tests, slug tests, etc.
• Watershed, drainage basin and recharge monitoring
• Stream gauging, lake and reservoir management
• Harbour and tidal fluctuation measurement
• Wetlands and stormwater run-off monitoring
• Water supply and tank level measurement
• Mine water and landfill leachate management
• Long-term water level monitoring in wells, surface water bodies and seawater environments
Levelogger 5 Specifications
Level Sensor: Piezoresistive Silicon with Hastelloy Sensor
Accuracy: ± 0.05% FS (Barologger 5: ± 0.05 kPa)
Stability of Readings: Superior, low noise
Resolution: 0.002% FS to 0.0006% FS
Units of Measure: m, cm, ft., psi, kPa, bar, ºC. ºF (Barologger 5: psi, kPa, mbar, ºC, ºF)
Normalization: Automatic Temperature Compensation Temp. Comp.
Range: 0º to 50ºC (Barologger 5: -10 to +50ºC)
Temperature Sensor: Platinum Resistance Temperature Detector (RTD) Temp. Sensor
Accuracy: ± 0.05ºC Temp. Sensor Resolution: 0.003°C
Battery Life: 10 Years – based on 1 reading/minute
Clock Accuracy (typical): ± 1 minute/year (-20ºC to 80ºC)
Operating Temperature: -20ºC to 80ºC
Maximum # Readings: 150,000 sets of readings
Memory Mode: Slate and Continuous Communication:
Optical high-speed: USB, SDI-12 57,600 bps with USB Size: 22 mm x 160 mm (7/8" x 6.3")
Weight: 146 grams (5.2 oz)
Corrosion Resistance: Baked-on coating using polymerization technology (inside and out)
Other Wetted Materials: Delrin® , Viton® , 316L stainless steel, Hastelloy, PFAS-free PTFE coating
Sampling Modes: Linear, Event & User-Selectable with Repeat Mode, Future Start, Future Stop, Real-Time View
Measurement Rates: 1/8 sec to 99 hrs
Barometric Compensation: Software Wizard and one Barologger 5 in local area (approx. 30 km/20 miles radius)
