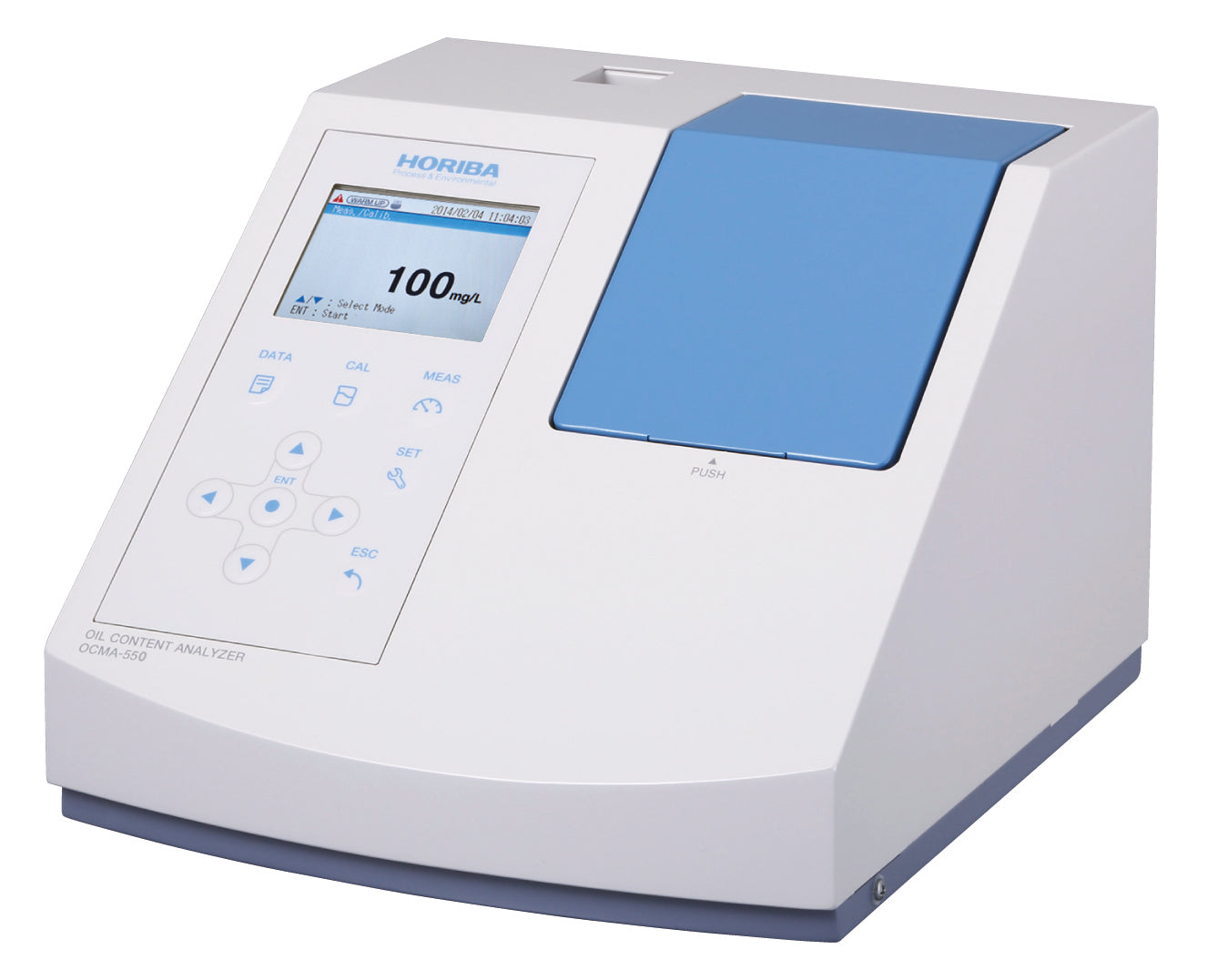

Horiba OCMA-550 Oil Content Analyzer
Horiba OCMA-550 Oil Content Analyzer
Horiba OCMA-550 Oil Content Analyzer
Horiba Instruments

Horiba OCMA-550 Oil Content Analyzer

Regular price $7,034.80 Sale price $8,180.00 Unit price per
Shipping calculated at checkout.

Horiba OCMA-550 Oil Content Analyzer

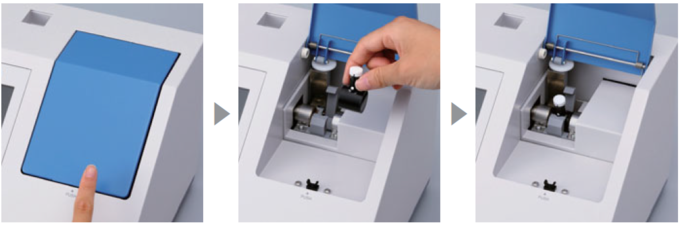

Horiba OCMA-550 to measure residual oil on components and concentrations of oil adhered on solids such as soil. Measurement can be easily made only by injecting the extracted water sample into the attached cell and setting it to the equipment. This model features a simple design which allows opening/closing of the door to setting of cell with just one hand. This is best for measurement of extracted samples such as evaluation of residual oil on components and measurement of oil contained in food.

Unit Includes: OCMA-550, 2.5mL dropper, B heavy oil 10mL, Quartz sample cell, cell cap, power cable and manual.

Horiba OCMA-550 Specifications

Measurement principle: Solvent extraction-non-dispersive infrared absorption analysis method
Measurement range: 0mg/L ~ 200mg/L
Resolution 0 to 99.9 mg/L; 0.1 mg/L
100 to 200 mg/L; 1 mg/L
Repeatability 0 to 9.9 mg/L; ± 0.4 mg/L ± 1 digit
10.0 to 99.9 mg/L; ± 2 mg/L ± 1 digit
100 to 200 mg/L; ± 4 mg/L ± 1 digit
*For standard liquids
Display Method 3.5 inches, 320×240 dots
Backlight Colour graphic LCD
Calibration Method Select each optionally zero and span calibration
Extraction Solvent S-316 solvent
※Do not use any other solvent than S-316
Amount of extraction solvent required Approx. 6.5ml (Amount of extration solvent required)
Extraction Method Using the extraction solvent and extracted manually outside the product
Ambient Operationg Temperature 0 to 40 ℃ (non condensation)
Power supply AC 100V to 240V ±10%, 50/60 Hz
Power consumption AC 100V to 240V : Approx.60VA
External Dimensions 195(H)×253(W)×293(D) mm
Mass Approx. 5 kg
External Output Output to an USB memory stick
Functions


300-item data memory(Measurement history)
Stabilized measurement value display
Self error determination
Clock function
Unit conversion function
