ORDERING INFORMATION: • AirLink 9850 is supplied with 2 wiring hubs on the bottom of the housing. Hubs can be installed on top or sides IF specified at the time of ordering. • To add 4-20 mA outputs, add the following amount to the list price based on the number of 4-20 mA outputs required: 0 no 4-20 mA add $0.00 to the price and -0 to the end of the part # 8 each 4-20 mA add $690 to the price and -8 to the end of the part # 16 each 4-20 mA add $1,380 to the price and -16 to the end of the part # 24 each 4-20 mA add $2,065 to the price and -24 to the end of the part # 32 each 4-20 mA add $2,750 to the price and -32 to the end of the part #
The RKI Instruments 9850 Interface wireless receiver is capable of monitoring all 255 wireless addresses and converting the signals to a RS-232 or RS-485 Modbus output. Designed to be used in conjunction with an existing PLC, computer or SCADA system currently in place. Other digital outputs include Ethernet-to-Website and USB Virtual COM PORT. If analog output is required, an optional Analog Card is available and provides a 4-20mA output for up to 32 wireless sensors.

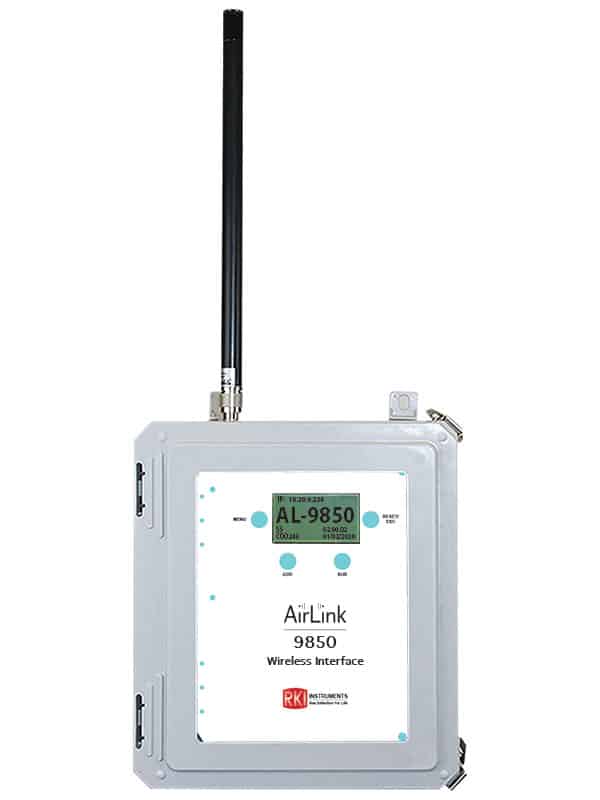

TheAirLink 9850 Interface Wireless Receiverrepresents the latest leading edge wireless technology in fixed gas detection today.
Features
255 Channel wireless interface – all addresses on configured network
Radio options: 900 MHz radio or 2.4 GHz Standard
12 to 35V DC operating voltage with optional AC power supply
Graphical LCD with LED backlight
Operating temperature range of -40ºC to +70ºC
4 Push button interface (ADD, MENU, SUB, and RESET/ESC)
Individually configurable low and high alarm set points per channel
Status LEDs for power and fault multi color status light; Amber fault LED for indicating system faults
Output options: Wet contact fault DC fault terminal; USB virtual COM port; RS-232 or RS-485 Modbus; Website for displaying readings, alarms, faults, and sensor information; Optional 4-20 mA out put of 8, 16, 24, 0r 32 channels
NEMA 4X Fiberglass non explosion proof enclosure with clear lid
