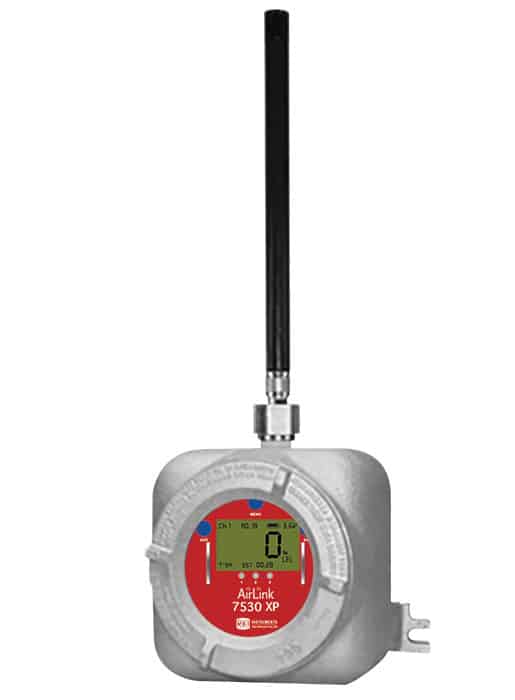

RKI AirLink 7530XP Relay Module, Explosion Proof
RKI Instruments

RKI AirLink 7530XP Relay Module, Explosion Proof

$68.97 $72.60
Shipping calculated at checkout.

RKI AirLink 7530XP Relay Module, Explosion Proof

The AirLink 7530 XP Relayer is a 32-Channel Gas Alarm System with 3 Relays that can monitor up to 32 Wireless gas detectors simultaneously. Magnetic switches allow for non-intrusive system setting and diagnostics. Three relays can be configured to activate up to the full scale reading and set to be either latching or non-latching. Housed in an explosion-proof enclosure for the safe and close-proximity installation of gas readings, alarm relays, and maintenance controls within hazardous locations.

The AirLink 7530 Relayer is also available as a non-explosion proof version.

Features

  • 32 Channel wireless relays: Contains 3 relays that can be activated by up to 32 remote wireless sensors
  • Radio options: 900 MHz radio or 2.4 GHz Standard
  • 12 to 35 VDC operating voltage with optional AC power supply
  • Graphical LCD with LED backlight
  • Operating temperature range of -40ºC to +70ºC
  • Push button interface (ADD, MENU, SUB) with 3 corresponding magnetic, non intrusive switches
  • Programmable alarms
    ◦ 3 Individually configurable alarm set-points: ◦ Set points – 3 red alarms
    ◦ 3 LED red indicators
  • Output options: Wet contact fault DC fault terminal, relay 3 can optionally be configured as a fault relay
  • Optional strobe and horn attached
  • Aluminum explosion proof enclosure with Class I, Div. 1, Groups B, C & D certifications
  • 1 Year limited hardware warranty
