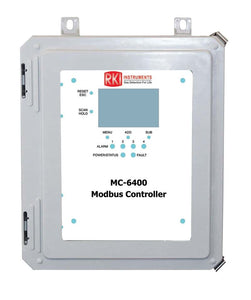

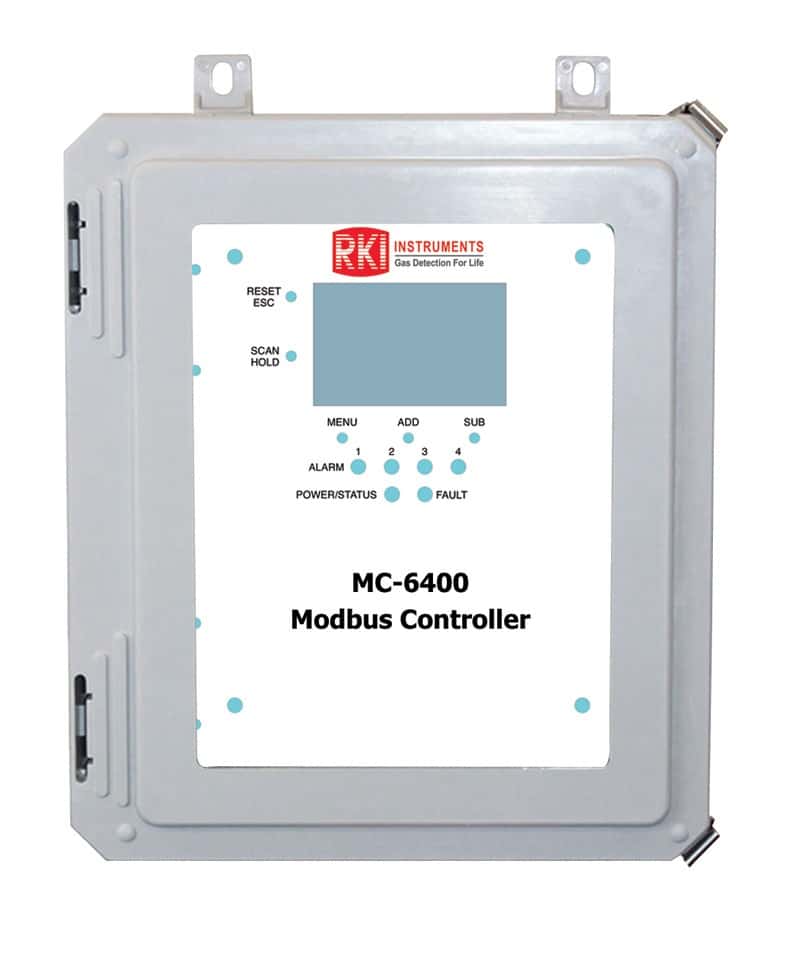

The MC-6400 controller is a 64-channel gas monitoring controller that can communicate with up to 64 gas sensors or transmitters through an RS-485 Modbus communication. Four relays can be individually set up to the full scale gas reading and may be latching or non-latching. Used in conjunction with RKI’s transmitters to create a safer working environment.
The MC-6400 controller represents the latest leading edge technology in fixed gas detection today.
Features
- 64 Channel Wired Modbus Controller
- 12 to 35V DC Operating voltage with an optional AC power supply
- Operating temperature range of -40ºC to +70ºC
- Graphical LCD with LED backlight
- 5 Push-button interface (ADD, MENU, SUB, SCAN/ HOLD and RESET/ESC)
- 4 Individually configurable alarm set-points: Four front panel ALARM LED indicators (Red); 4 dry- contact relays (4 amps maximum per relay)
- Status LEDs for power and fault: multi-color status light; Amber fault LED for indicating system faults
- Output options: Wet contact fault terminal, relay 4 can optionally be configured as a fault relay, RS-485 Modbus
- NEMA-4X weather, water, and chemical resistant enclosure
- 1-Year limited hardware warranty
