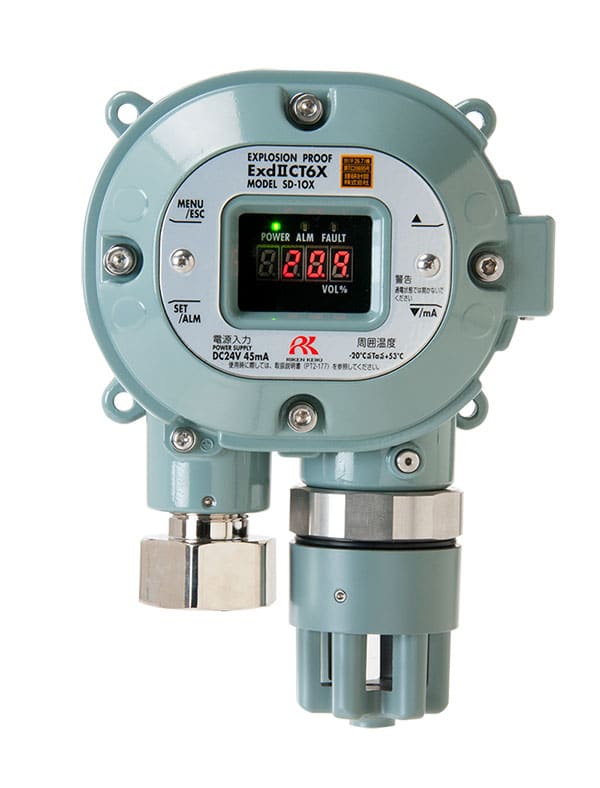

RKI Instrument’s model SD-1 Series smart combustible gas, toxic gas, oxygen, and organic vapor detector/transmitter is a robust and reliable explosion proof design for detecting LEL and ppm levels of hazardous atmospheres. In addition to measuring the common %LEL levels of methane, hexane and isobutane, for example, the SD-1 Series also has the capability of measuring a wide variety of toxic organic compounds in aPPM range such as acrylonitrile, ethylene oxide, n-methylpyrolidone, methylene chloride and many others.This gives the SD-1 Series a unique niche in RKI’s gas detector line-up. The SD-1 has an ATEX/IECEX approval for the explosion class ExdIICT5 and has an IP-65/67 ingress protection rating.
The SD-1 has a 4-20mA signal output as well as relay contacts for interfacing with other control systems or monitoring facilities.All SD-1 types are also available with HART communication instead of 4-20mA relay. SIL2 is available for the IR, EC and OX types.In facilitating non-intrusive conditions in hazardous atmospheres, the SD-1 can be calibrated and its menus navigated with magnetic switches and a magnetic key.
Features
Wide range of detectable gases
% LEL Combustibles, catalytic
% LEL Combustibles, IR
H2S, CO, & O2
PPM for acrylonitrile, ethylene oxide, n-methyl pyrolidone, methylene chloride, and many others
Sensor types include
Catalytic, Galvanic Cell, MOS, IR, & Electrochemical
