Vapor Pin

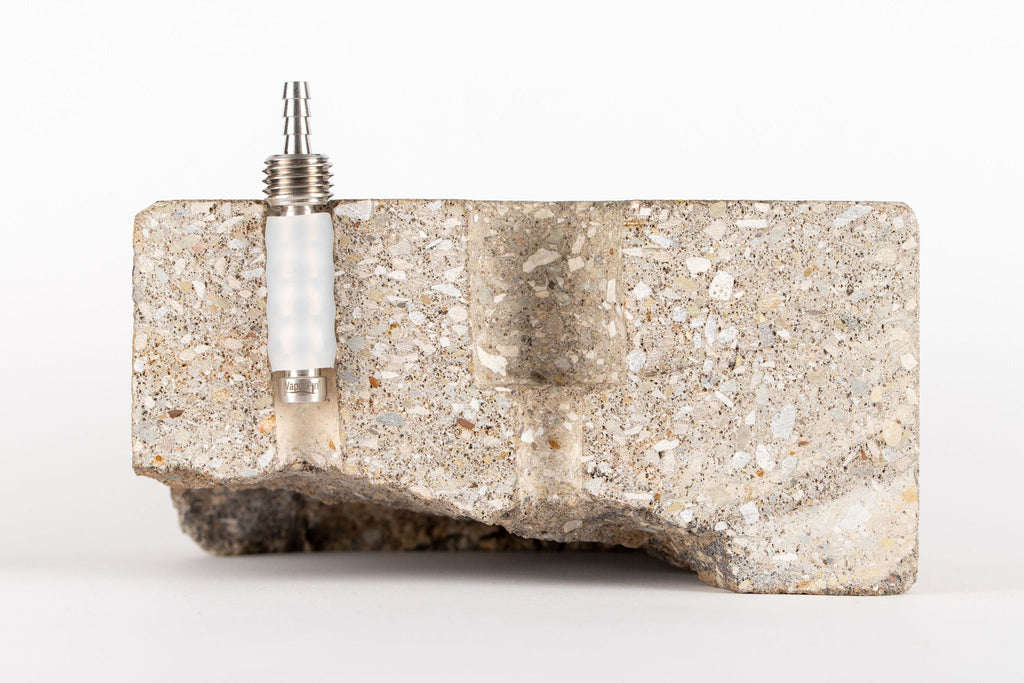

Stainless Steel Vapor Pin® Sampling Device
Regular price
$40.00
Shipping calculated at checkout.
The Stainless Steel Vapor Pin® Sampling Device connects to ¼-inch sample tubing (typically Nylon or Teflon®) with softer tubing, preferably Tygon®. Because stainless steel is more durable than brass and more corrosion resistant, we recommend stainless steel for long-term installations and in corrosive environments. Brass Vapor Pin® devices are less durable than stainless steel, but they can be reused repeatedly with proper care. We recommend brass Vapor Pin® devices for short-term installations, especially those installed in the stick-up configuration. Total length 3 1/2". Top barbed fitting is quarter inch in diameter.
This item can not be installed without the Installation/Extraction Tool or Silicone Sleeves. and the protective white caps.
| Length: | 3.22” |
| ID: | 0.13 |
| Material: | Stainless Steel |
| Weight: | .15Lb |
Brass Vapor Pin® Info
| Length: | 3.22” |
| ID: | 0.13 |
| Material: | Brass |
| Weight: | .15Lb |
FLX-VP INFO
| Length | 3.22” |
| ID | 0.13 |
| Material | Stainless Steel |
| Weight | .15Lb |
Sleeve Info
| Height | 1.57” |
| OD | .625” |
| ID | .375” |
| Material | Silicone |
Cap Info
| Height | .669” |
| OD | .354” |
| ID | .275” |
| Material | Silicone |
Tygon Connector Info
| Length | 1″ |
| OD | .312” |
| ID | .187” |
