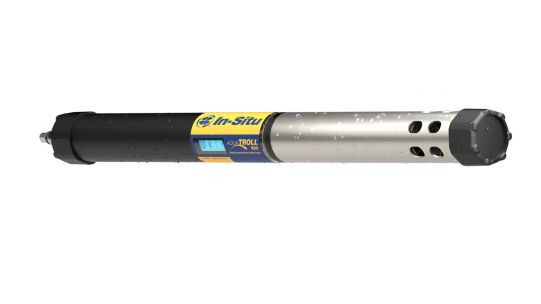

Aqua TROLL 600 Multiparameter Sonde
Aqua TROLL 600 Multiparameter Sonde
Aqua TROLL 600 Multiparameter Sonde
Aqua TROLL 600 Multiparameter Sonde
In-Situ

Aqua TROLL 600 Multiparameter Sonde

Regular price $3,645.00 Unit price per
Shipping calculated at checkout.

Aqua TROLL 600 Multiparameter Sonde

The Aqua TROLL 600 water quality platform is rugged in groundwater and corrosion-resistant in surface water, delivering accurate, reliable data in an easy-to-use, flexible instrument that performs for years. Base sensor configuration includes EPA-approved optical dissolved oxygen, pH/ORP, turbidity, conductivity, temperature, and pressure. Integrate with In-Situ telemetry systems and HydroVu™ Data Services for real-time feedback on your remote monitoring sites.

BE MOBILE

• Use the Aqua TROLL 600 anywhere: Titanium components and vented or non-vented options make it perfect for challenging environments and long-term deployments in fresh and salt water. Every detail has been engineered to be easy, reliable, and cost-effective.

• Save time in the field: VuSitu’s Calibration Assistant reduces errors and ensures accurate calibration values every time. Calibrate multiple sensors at once with Quick-Cal Solution.

• Streamline data management: Set up logs and manage data from the field using the VuSitu™ Mobile App. Consolidate all site information on your mobile device and tag sites with photos and GPS coordinates. Log data to your smartphone and download results in a Universal Data File for profiling, low-flow sampling, and more.

BE SMART

• Status in an instant: LCD display gives you an instant visual indication of sensor status, data log, battery life, and overall functionality to give confidence during deployment. The onboard SD card allows for quick and easy data backup and transfer.

• No fuss antifouling: Antifouling to protect all sensors. The only multiparameter sonde to have a sub-2 inch active antifouling system with cleanable conductivity.

• Get accurate results: Self-compensating turbidity/RDO/level, smart diagnostics, and stable sensor technology provide minimal drift and increased accuracy with NIST-traceable factory calibration report. Smart sensors store information internally, maintaining data and calibration within the sensor for traceable results.



Specifications

OPERATING TEMP. (Non-Freezing) -5 to 50° C (23 to 122° F) ISE: Ammonium and Nitrate 0 - 40°C, Chloride 0 - 50°C

STORAGE TEMP. Components Without Fluid -40°C to + 65°C (Non Freezing Water) pH/ORP Sensors -5°C to +65°C Ammonium/Nitrate: 0 - 40°C Chloride: 0 - 50°C

DIMENSIONS: 4.7 cm (1.85 in.) OD x 60.2 cm (23.7 in.) (includes connector) With bail: 72.9 cm (28.7 in.)

WEIGHT: 0.978 kg / 2.15 lbs. (includes instrument, sensors, restrictor and bumpers)

WETTED MATERIALS: PC, PC alloy, Delrin™, Santoprene™, Inconel™, Viton™, Titanium, Platinum, Ceramic, Nylon

WEIGHT:  1.45 kg / 3.2 lbs (includes all sensors, batteries, and bail)

MAX PRESSURE RATING: Up to 350 PSI

OUTPUT OPTIONS: RS-485/MODBUS, SDI-12, Bluetooth®

READING RATES 1 reading every 2 seconds

DATA LOGGING: 50 logs (defined, scheduled to run, or stored)

LOGGING MODES: Linear, Linear Average, Event

LOGGING RATE 1 minute to 99 hours

ENVIRONMENTAL RATING: IP68 with all sensors and cable attached IP67 without the sensors, battery cover or cable attached

INTERNAL MEMORY 1 MICRO SD CARD:  16 MB; 8+ GB micro SD card included, user replaceable

INTERNAL POWER BATTERY LIFE: internal user-replaceable Alkaline D batteries >6 months typical with wiping; >9 months typical with no wiping

EXTERNAL POWER VOLTAGE EXTERNAL POWER CURRENT:  8-36 VDC (not required for normal operation); Sleep: 0.10 mA typical Measurement: 16 mA typical, 45 mA max

HEX SCREW DRIVER: 0.050, 1.3 mm

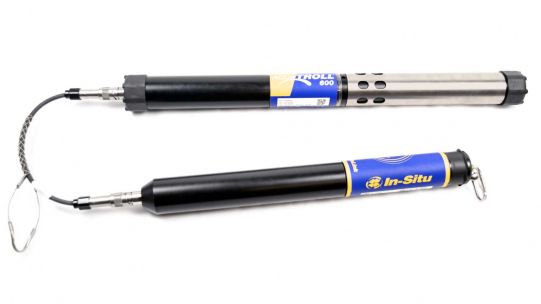

COMMUNICATION DEVICE: TROLL Com or Wireless TROLL Com

CABLE OPTIONS: Vented or non-vented polyurethane or vented Tefzel®

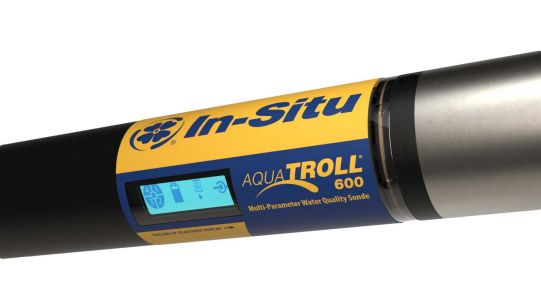

LCD DISPLAY: Integrated display shows status of sonde, sensor ports, data log, battery and connectivity.

SOFTWARE: Android™: VuSitu through Google Play™, Windows®: Win-Situ 5, Data Services: HydroVu

INTERFACE: Android 4.4, requires Bluetooth 2.0; Win-Situ 5 Software

CERTIFICATIONS: CE, FCC, WEEE, RoHS Compliant

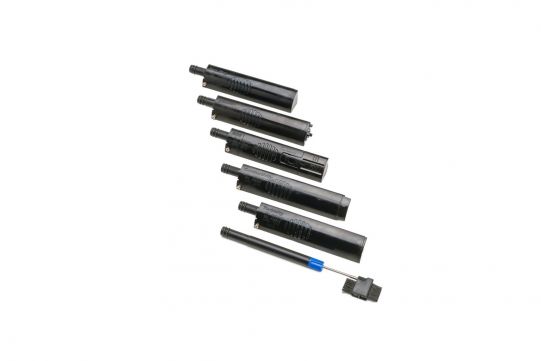

Standard Sensors

TEMPERATURE*

Accuracy - ±0.1° C

Range - -5 to 50° C (23 to 122° F)

Resolution - 0.01° C

Response Time -  T63<2s, T90<15s, T95<30s

Units of Measure - Celsius, Fahrenheit

Methodology - EPA 170.1

BAROMETRIC PRESSURE (VENTED MODELS ONLY)

Accuracy - +/- 1.0

Range - mBars 300 - 1100 mBars

Resolution - 0.1 mBar

Response Time - T63<1s, T90<1s, T95<1s

Units of Measure - Pressure: psi, kPa, bar, mbar, inHg, mmHg;

Methodology - Silicon strain gauge

pH

Accuracy - ±0.1 pH unit or better

Range - 0 to 14 pH units

Resolution - 0.01 pH unit

Response Time - T63<3s, T90<15s, T95<30s

Units of Measure - pH units, mV Std.

Methodology - Methods 4500-H+ EPA 150.2

ORP

Accuracy - +/- 5 mV

Range - ±1400 mV

Resolution - 0.1 mV

Response Times - T63<3s, T90<15s, T95<30s

Units of Measure - mV

Methodology - Std. Methods 2580

CONDUCTIVITY

Accuracy - ±0.5% of reading plus 1 µS/ cm from 0 to 100,000 µS/ cm;  ±1.0% of reading from 100,000 to 200,000 µS/ cm; ±2.0% of reading from 200,000 to 350,000 µS/cm

Range - 0 to 350,000 μS/cm; TDS 0-350 ppt; Salinity 0-350 PSU

Resolution - 0.1 μS/cm; TDE 0.1 ppt; Salinity 0.1 PSU

Response Times - T63<1s, T90<3s, T95<5s

Units of Measure - Actual conductivity (μS/cm, mS/ cm); Specific conductivity (μS/ cm, mS/cm) Salinity (PSU, ppt); Total dissolved solids (ppt, ppm); Resistivity (Ohms-cm); Density (g/cm3)

Methodology - Std. Methods 2510, EPA 120.1 Std. Methods 2520A

RUGGED DISSOLVED OXYGEN (RDO) WITH RDO-X

Accuracy - ±0.1mg/L +/-2% of reading

Range - 0 to 20 mg/L, 0 to 50 mg/L

Resolution - 0.01 mg/L

Response Times - T63<15s, T90<45s, T95<60s

Units of Measure - mg/L, %saturation, ppm

Methodology - EPA-approved In-Situ Methods: 1002-8- 2009, 1003-8-2009, 1004-8-2009

TURBIDITY - TSS (TOTAL SUSPENDED SOLIDS)

Accuracy - +/-2% of reading or +/-2 NTU, FNU, w.i.g.

Range - 0 – 4,000 NTU, 0-1,500 mg/L

Resolution - 0.01 NTU (0- 1,000); 0.1 NTU (1,000-4,000) 0.1 mg/L

Response Times - T63<1s, T90<1s, T95<1s

Units of Measure - NTU, FNU ppt, mg/L

Methodology - ISO 7027

AMMONIUM (NH4+ - N) RATED TO 25 M DEPTH -Unionized Ammonia, Total Ammonia (requires salinity, temperature and pH)

Accuracy - ±10% or ± 2 mg/L, w.i.g. (freshwater only)

Range -  0-10,000 mg/L as N

Resolution -  0.01 mg/L

Response Times - T63<1s, T90<10s, T95<30s

Units of Measure - mg/L, ppm, mV

Methodology -  N/A

NITRATE (NO3 - - N) RATED TO 25 m DEPTH

Accuracy - ±10% or ± 2 mg/L, w.i.g. (freshwater only)

Range - 0-40,000 mg/L as N

Resolution - 0.01 mg/L

Response Times - T63<1s, T90<1s, T95<1s

Units of Measure - mg/L, ppm, mV

Methodology -Std. Methods 4500- NO3 D

CHLORIDE (CL- -)

Accuracy - ±10% or ± 2 mg/L, w.i.g.12 (freshwater only)

Range - 0-150,000 mg/L

Resolution - 0.01 mg/L

Response Times - T63<1s, T90<10s, T95<30s

Units of Measure - mg/L, ppm, mV

Methodology -Std. Methods 4500- Cl- D

PRESSURE (OPTIONAL)

Accuracy - ±0.1% FS from -5 to 50°C

Range - Non-Vented or Vented 9.0 m (30 ft.) - Burst: 27 m (90 ft.) 30 m (100 ft.) - Burst: 40 m (130 ft.) 76 m (250 ft.) - Burst: 107 m (350 ft.) 100 m (325 ft.) - Burst: 200 m (650 ft.)

Resolution - 0.01% full scale

Response Times - T63<1s, T90<1s, T95<1s

Units of Measure - Pressure: psi, kPa, bar, mbar, inHg, mmHg; Level: in, ft., mm, cm, m; Level: in, ft., mm, cm, m

Methodology - Piezoresistive; Ceramic

WARRANTY

2 year - Sonde, RDO and sensor cap, temperature/conductivity, temperature only, turbidity (excluding pH/ORP); 1 year - pH/ORP, chloride ISE, accessories 90 Days - ISE sensors; Other See warranty policy (www.in-situ.com/warranty)
