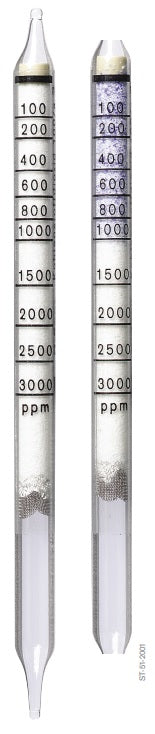

Carbon Dioxide 100/a, 100 - 3,000 PPM, Part # 8101811, 10 Tests

Application Range

 Standard Measuring Range: 100 to 3,000 ppm

Number of Strokes n: 10

Time for Measurement: approx. 4 min.

Standard Deviation: ± 10 to 15 %

Color Change: white š pale violet/ blue violet

Ambient Operating Conditions

Temperature: 15 to 25 °C

Absolute Humidity: max. 23 mg H2O / L

Reaction Principle

CO2 + N2H4 š   NH2-NH-COOH

Cross Sensitivity

No influence on the reading by 10 ppm hydrogen sulfide and 2 ppm sulfur dioxide.
