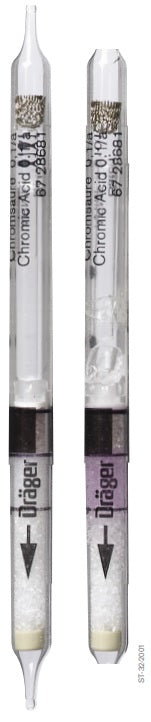

Chromic Acid 0.1/a, 0.1 - 0.5 mg/m3, (6728681)
Draeger

Chromic Acid 0.1/a, 0.1 - 0.5 mg/m3, (6728681)

Regular price $134.00 Unit price per
Shipping calculated at checkout.

Chromic Acid 0.1/a, 0.1 - 0.5 mg/m^3, Part # 6728681, 9 Tests

Application Range

Standard Measuring Range: 0.1 to 0.5 mg/m3 Discoloration compared to color standard.

Number of Strokes n: 40

Time for Measurement: approx. 8 min

Standard Deviation: ± 50 %

Color Change: white š violet

Ambient Operating Conditions

Temperature: 5 to 40 °C

Absolute Humidity: < 20 mg H2O / L

Reaction Principle

a) CrO3 + H2SO4 š CrVI

b) CrVI + diphenylcarbazide š CrIII + diphenylcarbazone

Cross Sensitivity

Metal chromates such as zinc or strontium chromate are indicated with about half the sensitivity. CrIII compounds do not affect the indication. Very high chromate concentrations lead to a rapid bleaching of the indication. Measurements should be repeated with less strokes.

Additional Information

After carrying out the required 40 pump strokes the reagent ampoule must be broken, the liquid transferred onto the indicating layer and carefully drawn through it using the pump
