12 Volt Stainless Steel Mini Monsoon®XL 80 Pump
Proactive Environmental Products

12 Volt Stainless Steel Mini Monsoon®XL 80 Pump

Regular price $1,055.50 Sale price $1,373.74 Unit price per
Shipping calculated at checkout.

The low amp draw, hardworking Stainless Steel Mini Monsoon® XL 80 Pump fits into 2 inch schedule 40 and 80, and larger diameter wells. The Stainless Steel Mini Monsoon® XL 80 Pump is powered by a 12 volt DC power source, such your vehicle. For remote sites, consider the Proactive® 60 AMP battery power pack, or a 12 volt DC portable spill-safe AGM battery.



Stainless Steel Mini Monsoon® XL 80 Pump is most popular for its price point, reliability, performance, ease-of-use, and the flexibility to be used in multiple applications!



The Stainless Steel Mini Monsoon® XL 80 Pump is compatible with several 12 volt DC autonomous pump control systems to choose from, such as Proactive Environmental Products®:



Pro Transformer #1



Pro Transformer #2



Pro Transformer #3



Pro Solar Charger #1



60 & 80 Series Solar Direct



Features:

  • Designed for 2” schedule 40 and 80 and larger diameter wells

  • Submersible, single stage centrifugal style pump

  • No controller or booster required

  • Consistent flow rate at 12.5 DC volts output to the pump

  • Hardworking pump with computer engineered bottom debris filter screen allows for operation under harsh conditions with higher turbidity

  • Field ready right from the box

  • Auto-Priming so in the event of a power outage the pump restart is at same pump setting

  • Sleek dome shape construction minimizes well hang-ups

  • Comes with 90 feet of wire that can be cut to desired length

  • Can run continuously in water without the need for a cool down

  • Stainless Steel Mini Monsoon®XL 80 motor modules provide 400+ hour life. True life expectancy of the motor module is around 1,000+ hours and varies upon application and conditions in the well

  • Eliminate downtime with the incorporated Proactive Environmental Products® Patented (#7584785) 1 minute quick change motor module technology

  • Required tubing size: 3/8”id x ½” od

  • PFO/PFA free

  • Warranty: Manufacturer 60 days on parts and labor



Specifications:

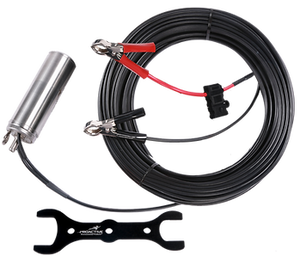

The Stainless Steel Mini Monsoon® XL 80 Pump consists of 4 components: The 3 Pin Bayonet Motor Module Connector, Replaceable Motor Module, Outside Stainless Steel Housing with Stainless Steel Bottom Inlet Filter Screen (Assembled as One Unit), and the Pump Wire


WATT CONSUMPTION (MAX):                     240 WATTS (MAX)


DC VOLT RECOMMENDATION:                   12-15 DC (direct current) At Source


AMP CONSUMPTION (MAX):                       16 AMPS


MEASUREMENTS:                                           LENGTH 7.5" / DIAMETER: 1.82"


REQUIRED TUBING:                                       3/8" ID X 1/2" OD TUBING


SUPPLIED WITH:                                           90 FEET OF HEAVY DUTY 10 GAUGE

                                                                            WIRE WITH ALLIGATOR CLAMPS


PUMP CONSTRUCTION:                               STAINLESS STEEL



Manufactured from PFOA Free Parts
