Ethylene Oxide 1/a, 1 - 15 PPM, (6728961)
Draeger

Ethylene Oxide 1/a, 1 - 15 PPM, (6728961)

Regular price $86.00 Unit price per
Shipping calculated at checkout.

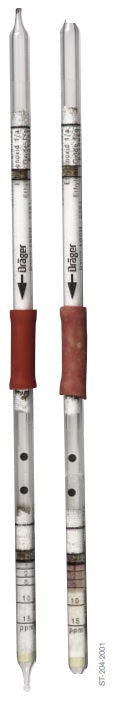

Ethylene Oxide 1/a, 1 - 15 PPM, Part # 6728961, 5 Tests

Application Range

Standard Measuring Range: 1 to 15 ppm

Number of Strokes n: 20

Time for Measurement: approx. 8 min

Standard Deviation: ± 20 to 30 %

Color Change: white š pink

Ambient Operating Conditions

Temperature: 10 to 30 °C

Absolute Humidity: 3 to 15 mg H2O / L

Reaction Principle

a) Ethylene Oxide š HCHO

b) HCHO + C6H4(CH3)2 + H2SO4 š quinoid reaction products

Cross Sensitivity

Styrene, vinyl acetate and acetaldehyde are indicated with a yellowish brown discoloration. It is impossible to measure ethylene oxide in the presence of ethylene glycol and formaldehyde because they produce the same discoloration.

Additional Information

The reagent ampoule must be broken before carrying out the measurement.
