Geotech Geopump 2 Peristaltic Pump

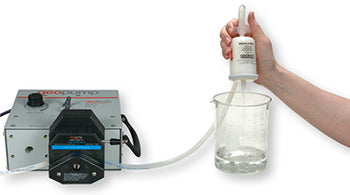

The Geotech Geopump™ Series 2 Peristaltic Pump is designed for single and multi-stage pressure or  vacuum pumping of liquids. The unit operates by mechanical peristalsis, so the sample only comes in contact with the tubing. This allows for consistent sample integrity as well as easy cleaning and replacement. The Geopump  is ideally suited for field sample removal from shallow wells and all surface water sources or for laboratory use.

FEATURES

• Exceptional field durability

• Operate from 60 to 600 RPM

• Up to 1 liter/min. delivery rate

• Operate to a depth of 27 feet (8 meters)

• Variable speed control

• 12VDC only

• Two pumping stations available, which can be piggybacked for multi-station pumping

• Reversible flow feature for back-flushing

• Disposable and dedicated tubing means  controlled costs and no decontamination  issues

OPERATION

The Geotech Peristaltic Pumps operate by mechanical peristalsis, so the sample only comes in contact with the tubing. This allows for sample integrity as well as easy cleaning and replacement.  Geopumps operate from any external 12V DC power source. SERIES II Geopump™ Peristaltic Pumps are available in AC only, DC only, or AC/DC combination. They have two pumping stations which can also be piggybacked for multi-station pumping. The first pumping station has a variable speed of 30 to 300 RPM and the second station 60 to 600 RPM.

ACCESSORIES

• easy-load II® pump head

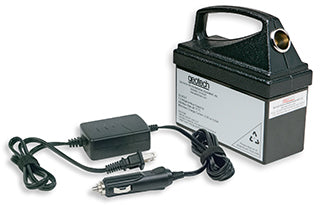

• Rechargeable battery

• Battery charger

• Carrying case

SPECIFICATIONS

Operating Range: Suction from 27 feet (8 meters) at sea level

Principle of Operation: Mechanical peristalsis

Dimensions: 3.5 x 8 x 8 in. (9 x 20 x 20 cm)

Power Source: Any external 12-18 V DC @ 70 Watts

Power Cord: 12V DC adapter cord

Power Cord Length:  DC Cord 15 Feet (4.6 Meters)

Range of Speed: First pumping station 30 to 300 rpm, Second pumping station 60 to 600 rpm

Speed Control: Stepless variable speed control

Liquid Delivery Rate: 1.67 ml per revolution

Pumping Options: Pressure or vacuum (reversible flow)

Pump Head Rotor: Cold rolled steel

Warranty: 1 year

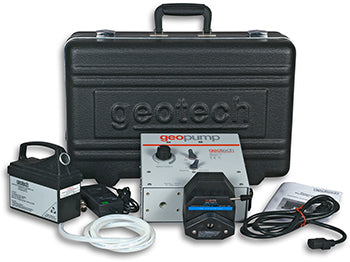

Rental Unit Includes - Geopump 2 w/ easy-load II pump head, power cord with cigarette lighter plug, cigarette to battery clip adapter, 9 amp hour battery, charger, 1 foot section of silicone tubing, manual and case.
