Honeywell Rae Systems MiniRae 3000+
Honeywell Rae Systems

Honeywell Rae Systems MiniRae 3000+

Regular price $85.00 Unit price per
Shipping calculated at checkout.

Honeywell Rae Systems MiniRae 3000+

Portable Handheld VOC Monitor

The MiniRAE 3000 + is a comprehensive handheld VOC (Volatile Organic Compound) monitor that uses a third-generation patented PID technology to accurately measure one of the highest levels of ionizable chemicals available on the market. The MiniRAE 3000 + is a comprehensive handheld VOC (Volatile Organic Compound) monitor that uses a thirdgeneration patented PID technology to accurately measure one of the highest levels of ionizable chemicals available on the market.

It provides full-range measurement from 0 to 15,000 ppm of VOCs. The MiniRAE 3000 + has a built-in wireless modem that allows realtime data connectivity with the command center located up to 2 miles (3 km) away through a Bluetooth connection to a RAELink 3* portable modem or optionally via Mesh Network.

• Highly accurate VOC measurements

• Reflex PID TechnologyTM

• Low maintenance—easy access to lamp and sensor

• Low cost of ownership

• 3-year 10.6eV lamp warranty

• BLE module & dedicated APP for Enhanced Datalogging capability

Features & Benefits

• Third-generation patented PID technology

• Reflex PID TechnologyTM

• VOC detection range from 0 to 15,000 ppm

• 3-second response time

• Humidity compensation with built-in humidity and temperature sensors

• Six-month datalogging

• Highly connectivity capability through multiple wireless module options

• Large graphic display with integrated flashlight

• Multi-language support with 10 languages encoded

• IP- 67 waterproof design

Applications

• Oil and Gas

• HazMat

• Industrial Safety

• Civil Defense

• Environmental and Indoor Air Quality

Instrument Specifications

Size: 10” L x 3.0” W x 2.5” H (25.5 cm x 7.6 cm x 6.4 cm)

Weight: 26 oz (738 g)

Sensors: Photoionization sensor with standard 10.6 eV or optional 11.7 eV lamp


Battery: • Rechargeable, external field-replaceable Lithium-Ion battery pack • Alkaline battery adapter

Running time: 16 hours of operation (12 hours with alkaline battery adapter)

Display: Graphic 4 lines, 28 x 43 mm, with LED backlight for enhanced display readability

Keypad: 1 operation and 2 programming keys, 1 flashlight on/off

Direct Readout: Instantaneous reading • VOCs as ppm by volume (mg/m3) • High values • STEL and TWA • Battery and shutdown voltage • Date, time, temperature

Alarms: 95dB at 12” (30 cm) buzzer and flashing red LED to indicate exceeded preset limits • High: 3 beeps and flashes per second • Low: 2 beeps and flashes per second • STEL and TWA: 1 beep and flash per second • Alarms latching with manual override or automatic reset • Additional diagnostic alarm and display message for low battery and pump stall

EMC/RFI: Compliant with EMC directive (2004/108/EC) EMI and ESD test: 100MHz to 1GHz 30V/m, no alarm Contact: ±4kV Air: ±8kV, no alarm

IP Rating: • IP-67 unit off and without flexible probe • IP-65 unit running

Datalogging: Standard 6 months at one-minute intervals

Calibration: Two-point or three-point calibration for zero and span. Reflex PID TechnologyTM Calibration memory for 8 calibration gases, alarm limits, span values and calibration dates

Sampling Pump: • Internal, integrated flow rate at 500 cc/mn • Sample from 100’ (30m) horizontally or vertically

Low Flow Alarm: Auto pump shutoff at low-flow condition

Communication & Data Download: • Download data and upload instrument set-up from PC through charging cradle or using BLE module and dedicated APP • Wireless data transmission through built-in RF modem

Wireless Network: Mesh RAE Systems Dedicated Wireless Network

Wireless Range: (Typical) Up to 15ft (5m) for BLE EchoView Host: LOS > 660 ft (200 m) ProRAE Guardian & RAEMesh Reader: LOS > 660 ft (200 m) ProRAE Guardian & RAELink3 Mesh: LOS > 330 ft (100 m)

Safety Certifications: US and Canada: CSA, Classified as Intrinsically Safe for use in Class I, Division 1 Groups A, B, C, D Europe: ATEX II 2G EEx ia IIC T4

Temperature: -4° to 122° F (-20° to 50° C)

Humidity: 0% to 95% relative humidity (non-condensing)

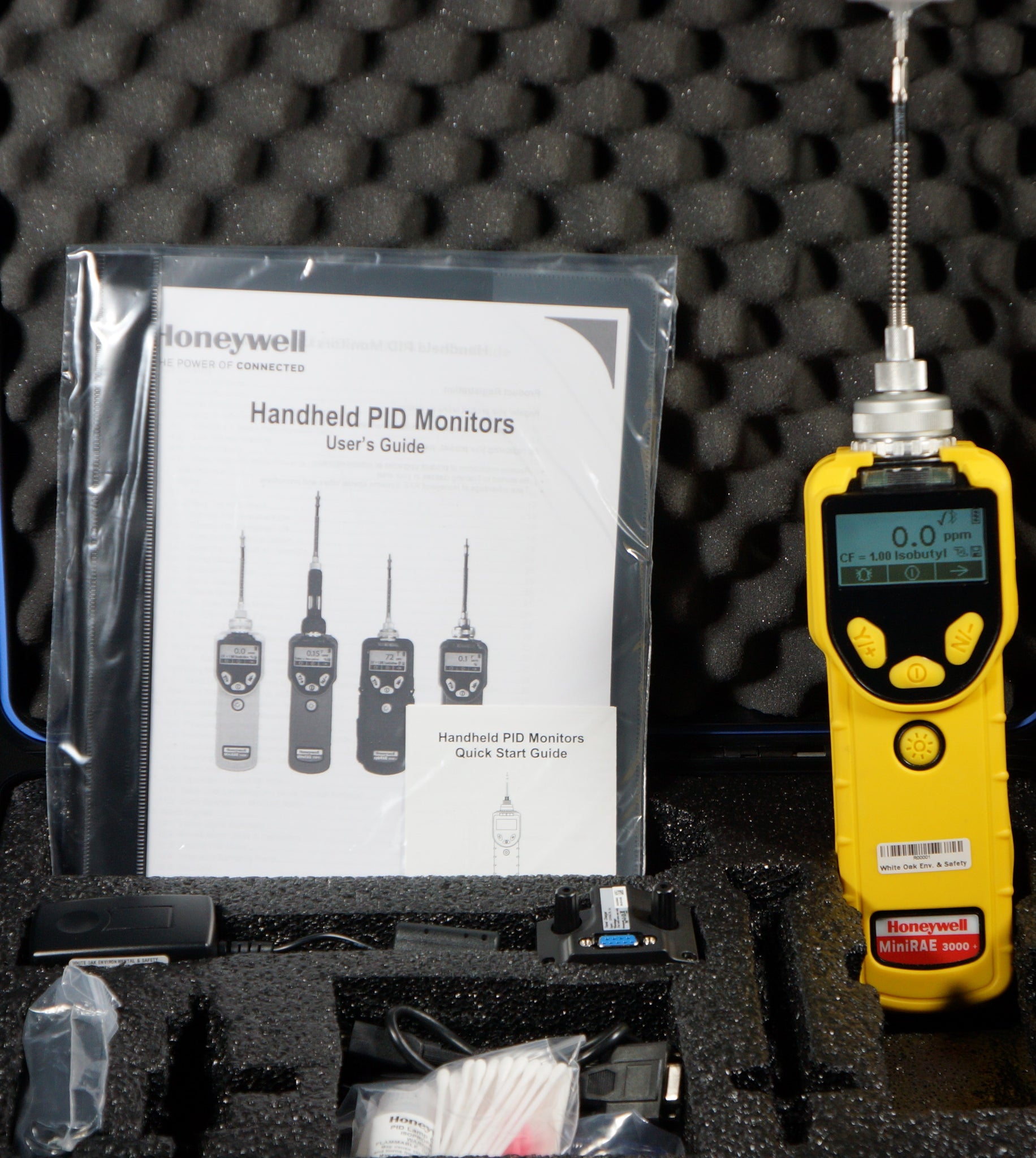

Rental unit includes: Meter with 10.6eV lamp (optional 11.7eV lamp), probe with filter, download cable, software, manual, charger, alkaline battery, case, tool kit and lamp cleaning kit.
