RKI GX-6000
RKI Instruments

RKI GX-6000

Regular price $0.00 Unit price per
Shipping calculated at checkout.

RKI GX-6000 *16% off MSRP*

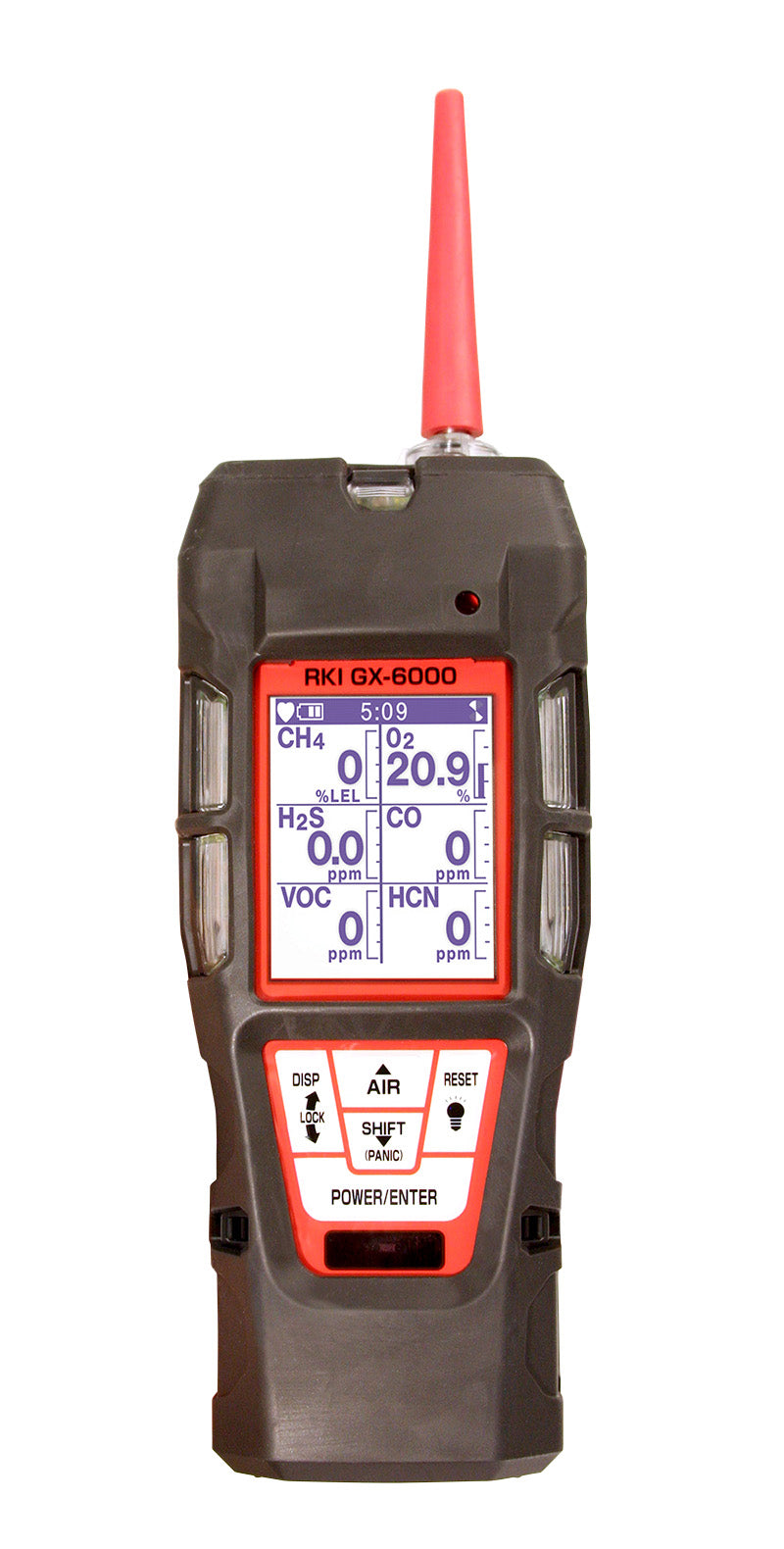

Simply put, the GX-6000 is a game changer. This powerful hand-held instrument is capable of simultaneously monitoring up to 6 gases. In addition to the standard 4 confined space gases which include combustibles, O2, CO, & H2S, the GX-6000 has 2 additional smart channels that accept PID, IR or super toxic sensors. Equipped with a strong internal sample pump, a man-down alarm, a panic alarm, an LED flashlight, and large auto rotating LCD display, the GX-6000 can operate as a single gas PID unit or a multifunctional tool utilizing all 6 channels. The GX-6000 with a PID sensor will come equipped with a library of over 600 VOC gases to choose from as standard. Choosing from the library is easy with a personalized favorites list of 30 commonly used VOC’s as well as a list of 8 of the most recently used VOC’s. A benzene-specific version is available using a pre-filter tube for detecting low levels of benzene. Four PID sensors are available, 10.0 eV, 10.6 eV (low or high range), and 11.7 eV. Any combination of two PID sensors can be installed.

The GX-6000 has a rugged design built for the nastiest environments. It is equipped with a removable impact-resistant rubber boot and a dust and water resistant enclosure with an IP-67 rating. With 5 bright LED lights on 3 sides of the instrument, alarms are easily seen from a variety of perspectives. With vibration and loud audible alarm, GX-6000 will easily alert users when needed.

Features

•  6 Operating modes

•  Smallest 6 gas sample draw

•  2 Interchangeable smart sensor slots

•  4 PID options: 10.6 (2 ranges) eV, 10.0 eV, and 11.7 eV lamps

•  PID library of over 600 VOCs  — Easily switch target VOC from customizable user     list or a recently used list

•  Benzene specific version

•  PPM Leak Check mode

•  LEL sensor protection mode

•  Man-down alarm

•  Panic alarm

•  Auto display rotation

•  Peak-bar display

•  LED Light source

•  Internal sample pump

•  Light weight, small, rugged IP-67 design

•  Interchangeable battery packs (Li-ion / alkaline)

•  Operates up to 14 hours on Li-ion battery pack, fully recharges in 3 hours; 8 hours operation with  alkaline pack

•  Field replaceable sensors, batteries, filters and pump

•  Intrinsically safe ATEX / IECEx / cCSAus

Applications

•  Confined space entry

•  Hazmat response teams

•  Arson investigation

•  Remediation sites

•  Perimeter monitoring

•  Leak detection

•  Landfill monitoring

•  Wing tank entry

Gases & Detectable Ranges

PID Sensors
10.6 Lamp PPB    0 - 50,000 ppb 1 ppb: (< 5000 ppb) 10 ppb: (>  5,000 ppb)

10.6 Lamp PPM   0 - 6,000 ppm 0.1 ppm: (< 600 ppm) 1 ppm: (> 600 ppm)

10.0 Lamp Benzene Specific 0.1 - 50 ppm 0.01 ppm (0 ~ 10 ppm) 0.1 ppm (10 ~ 50 ppm)

10.0 Lamp PPM   0 - 100 ppm 0.01 ppm (0 ~ 10 ppm) 0.1 ppm (10 ~ 100 ppm)

11.7 Lamp            0 - 1000 ppm 0.1 ppm

Galvanic

Oxygen (O2)         0 - 40.0% Vol. 0.1% Vol.

Electro Chemical

Carbon Monoxide (CO)      0 - 500 ppm 1 ppm

Hydrogen Sulfide (H2S)     0 - 100.0 ppm 0.5 ppm

Toxics (EC Sensors)

Ammonia (NH3)                0 - 400.0 ppm 0.5 ppm

Chlorine (Cl2)                     0 - 10.00 ppm 0.05 ppm

Hydrogen Cyanide (HCN)  0 - 15.0 ppm 0.1 ppm

Nitrogen Dioxide (NO2)     0 - 20.00 ppm 0.05 ppm

Sulfur Dioxide (SO2)           0 - 99.90 ppm

IR Sensors

Carbon Dioxide (CO2)       0 - 10,000 ppm 20 ppm

Carbon Dioxide (CO2)       0 - 10.00% Vol. 0.02%

Methane (CH4)                  0 - 100% LEL

Methane (CH4)                  0 - 100% Vol.

LEL Hydrocarbons             0 - 100% LEL

%VOL Hydrocarbons         0 - 30% Vol.

Catalytic Hydrocarbons (CH4, std) 0 - 100% LEL

Common Specifications

Sample Method Sample draw pump, flow rate 0.45 LPM, 50 foot sample range

Display Digital LCD, autobacklight, peak bar display, auto display rotation, and  customize order of gases

Audible Alarm 95 dB at 1 ft.

Languages English, Spanish, French, German, Italian, Japanese, Korean, Portuguese, Russian

Continuous Operation 14 hours on Lithium-ion battery pack. Complete recharge in 3 hours. 8 hours Alkaline battery pack (3 AA size within each pack)

Operating Temp.  & Humidity -4°F to 122°F (-20°C ~ +50℃), 0- 95% RH non condensing

Dimensions 2.6” W x 7.8” H x 2” D (H200 x W68 x D52 mm) 14 ounce (400g) (with lithium battery pack)

Case Material Dust and water resistant with IP-67 approval (exclude sample hose and probe)

Safety Design / Approvals Explosion proof: IECEx , ATEX , TIIS , cCSAus Explosion class :Ex ia IIC T4 Ga Others: CE Marking

Standard Features

2 Smart sensors slots auto recognize sensor changes

Library of over 600 VOC’s

User defined VOC list. Up to 30 frequently used

Recent VOC list for last 8 selected gases

Pump and circuit status indicators

User & station ID selection menu

Datalogging (interval, alarm trend, station and user ID)

Snap logging - on demand data logging

Demand zero / Auto zero

BUMP and CAL expiration alarm

Flashlight

IrDA communication

LEL sensor protection mode

Standard Accessories

• Rubber boot  • Belt clip  • Hand strap • Tapper nozzle

• Probe with hydrophobic & dust filter 3’ teflon lined hose

• Benzene pre-filter tubes and holder (benzene versions)

Optional Accessories

• SDM-6000 calibration station

• Bundles with instrument carrying case and accessories • Flexible probes

• Up to 50 foot sample hoses • Filter set • IrDA cable

Warranty                                                                                                                      Two years material (including sensors) and workmanship. One year for PID sensor (Two months for 11.7 eV Lamp)
