Sensidyne Gilair Plus 5 pack Kit w/ Bios Defender
Sensidyne Gilair Plus 5 pack Kit w/ Bios Defender
White Oak Environmental & Safety, LLC

Sensidyne Gilair Plus 5 pack Kit w/ Bios Defender

Regular price $150.00 Unit price per
Shipping calculated at checkout.

Sensidyne Gilair Plus 5 pack Kit w/ Bios Defender

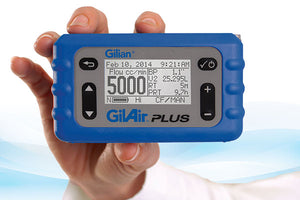

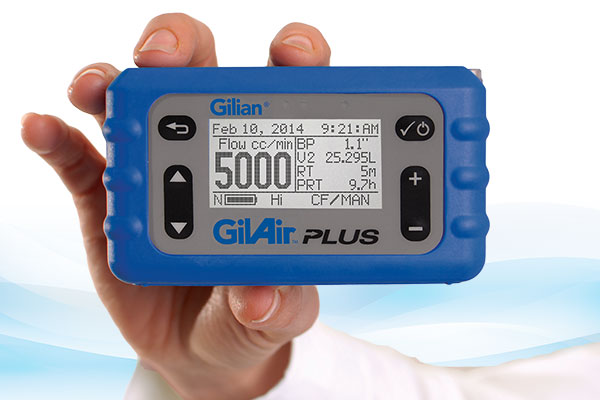

Air sampling is a snap with the Sensidyne Gilair Plus. An extremely versatile pump capable of flow rates from 1 ml/min up to 5 L/min without external adapters. You can switch between constant flow and constant pressure modes allowing for tube and cassette sampling.

Our 5 pack kit includes a Bios Defender 510m for accurate pump calibration.

Gilair Plus Specifications

Flow Range
Constant flow 20 - 5,000 cc/min. without external adaptors
Constant pressure 1 - 5,000 cc/min without external adaptors

Flow Modes
Constant Flow or High and Low Flow Constant Pressure

Accuracy

Flow Display ± 5% or 3 cc/min of set flow, whichever is larger

Constant Flow Control ± 5% or 3 cc/min of set flow, whichever is larger

Constant Pressure Control ± 10% of back-pressure

Back Pressure Capability

(8-hour runtime) 5000 cc/min. up to 12” H20 back pressure

4000 cc/min. up to 20” H20 back pressure
3000 cc/min. up to 30” H20 back pressure
2000 cc/min. up to 30” H20 back pressure
1000 cc/min. up to 35” H20 back pressure
450 - 1000 cc/min. up to 40” H20 back pressure
20 - 449 cc/min. up to 40” H20 back pressure

Run Time 8 hour minimum

Flow Fault If flow changes exceed 5% within back pressure specifications, fault notification appears. If fault exceeds 30 seconds, pump shuts down. Selectable automatic fault recovery allows the pump to attempt restart every 3 minutes for up to 10 times or to hold until manual intervention

Environmental

Temperature Ranges

Operating 32°F to 113°F (0°C to 45°C)

Storage -4°F to 113°F (-20°C to 45°C)

Charging 41°F to 104°F (5°C to 40°C)

Humidity Ranges

Operating 5-95 %RH, non-condensing

Storage 5-98 %RH, non-condensing

General

Display Flow rate, sample time, and sample volume in actual conditions

Controls

Indicators Green and Red LED’s

Dimensions 4.3 x 2.4 x 2.4 inches (10.9 x 6.1 x 6.1 centimeters)

Weight 20.5 ounce (581 grams)

Warranty 2 years from original shipment, 5 years for pump keypad, and 1 year on rechargeable NiMH battery pack

Electrical

Power Options Removable rechargeable nickel-metal hydride (NiMH) battery pack, optional alkaline battery pack, or DC power

Battery Level Indicator On-screen icon displays battery level

Interface Connectors All pump interface is carried out via the Dock or keypad

Dock Functions Battery charging, computer interface, and auto-calibration

Charging Time Under 3.5 hours

Approvals

EN 1232 Compliant

Intrinsic Safety

US/Canada NRTL (FM) Class I, Div 1 Groups A, B, C, D, E, F, and G;
Class II, Div 1 Zone 0; Class III, T4

ATEX/IECEx
 II 1 G
Ex ia IIC T4

CE

Applicable Directives ATEX 94/9/EC
EMC 2004/108/EC (RFI) LVD 2006/95/EC

RoHS Compliant

Bios Defender 510m Specifications

Range

50-5,000 mL/min

Measurements

Volumetric Accuracy: ±1% of reading

Time per Measurement: 1-15 seconds (approximate)

Type: Single, Continuous or Burst

Volumetric Flow Units: cc/min, mL/min, L/min, cf/min

Basics

Dimensions (H x W x D): 5.5 x 6 x 3 in / 140 x 150 x 75 mm

Weight: 29 oz / 820 g

Configuration: Integrated flow measuring cell, valve and timing mechanism

AC Power Adapter/Charger: 12VDC, 250ma, 2.5 mm, center positive

Port Tube Diameter: 1/4 in / 6.35 mm

Battery: 6V rechargeable, sealed lead-acid, 6-8 hours typical operation

Battery Operational Time (5 cycles/min): 3 hrs backlight on, 8 hrs backlight off

Pressure & Suction Fittings: ¼” barbed tube fittings

Display: Backlit graphical LCD

Usage

Flow Modes: Suction or Pressure

Operating Pressure (Absolute): 15 PSI

Operating Temperature: 0-50°C

Ambient Humidity: 0–70%, non-condensing

Storage Temperature: 0–70°C

Rental Includes - (5) Gilair Plus pumps, (1) Bios Defender 510m, case, chargers, tubing and manuals. *Cyclones available on request
