Solinst Model 101 P7 Water Level Meter With 12V Power Reel

Regular price $4,810.15 Unit price per
Shipping calculated at checkout.

Solinst Water Level Meter Model 101 w/ P7 Probe

For measuring the depth to water in wells, boreholes, standpipes, and tanks, Model 101 Water Level Meters are the industry standard for portable hand operated meters. They are sturdy, easy to use and read accurately to 1/100 ft. or each millimeter. There are two versions to choose from. The Model 101 P7 Water Level Meter features a pressure-proof probe rated to 500 psi and laser marked PVDF tape.

Operating Principles

Model 101 Water Level Meters use corrosion proof stainless steel probes attached to permanently marked flat tape, fitted on a well-balanced reel. They are powered by a standard 9 volt battery. The probes incorporate an insulating gap between electrodes.  When contact is made with water, the circuit is completed, activating a loud buzzer and a light. The water level is then determined by taking a reading directly from the tape at the top of the well casing or borehole. A sensitivity control allows the buzzer to be turned off while in cascading water, and ensures a clear signal in both high and low conductivity conditions.

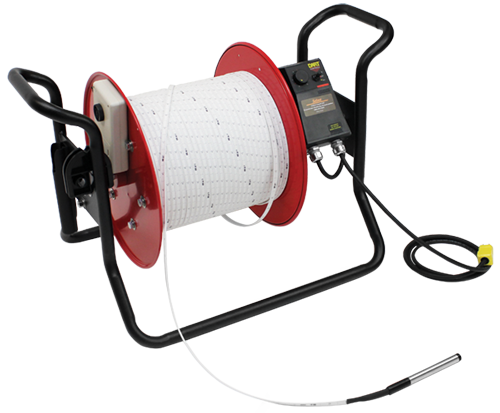

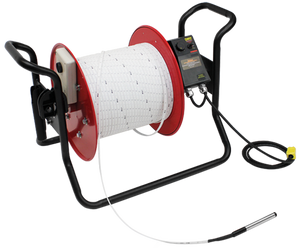

Power Reels

Power reels can be very useful to allow faster or less strenuous operation of longer lengths of tape.

P7 Probe

The P7 Probe is submersible up to 1000 ft. (300 m), therefore, you can measure total well depth in ideal conditions. The sensor at the tip of the probe provides consistent measurements with almost zero displacement. The tape seal plug design allows the probe to be quickly and easily replaced, if required. Size: 5/8" dia., 5.38" long (16 mm x 137 mm) Weight:  ~4.5 ounces (128 g)

PVDF Laser Marked Tape

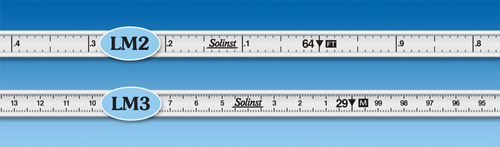

The Model 101 P7 Water Level Meter uses extremely durable, PVDF flat tape, traceable to NIST and EU measurement standards. Each tape conductor contains 13 strands of stainless steel, and 6 strands of copper-coated steel, making the tape non-stretch and high in tensile strength and electrical efficiency. The tape has a thick dog bone design that prevents adherence to wet surfaces, and allows it to hang straight in application. It is also easy to splice. The 3/8" (10 mm) tape comes with permanent laser markings every 1/100 ft. or each millimeter, in lengths up to 5000 ft. (1500 m).  LM2:  Feet and tenths: with markings every 1/100 ft. LM3:  Meters and centimeters: with markings every mm

Features

Accurate: • Markings each 1/100 ft. or millimeter  • Traceable to national standards  • Sensitivity adjustable to conductivity  • Probes avoid false readings in cascading water Reliable: • Permanent laser markings  • Non-stretch PVDF tape with stainless steel   conductors Long Life: • Rugged, corrosion proof components  • Strong, flexible tapes  • Easy to splice and repair Flexible: • PVDF replacement tapes are interchangeable with other meters

Length Options

Solinst Model 101 P7 Water Level Meter With 12V Power Reel are available in the following standard lengths:

*1000 ft.  1250 ft.  1650 ft.  2000 ft.  2500 ft.  5000 ft.

*300m  400m  500m 600m 750m 900m 1000m 1500m

Other Options

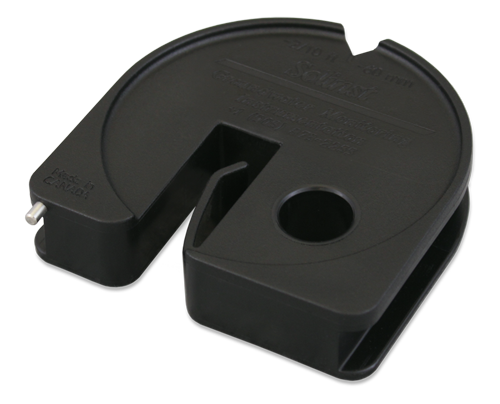

Tape Guide/Datum A tape guide is provided with each Meter. It protects the tape from damage on rough edges of well casing and ensures easy, consistent measurements, regardless of who takes the readings. It can also provide support on the casing, for small reels.
