Well-Mount Field Table
Solinst Model 880 Well-Mount Field Table
To help keep your equipment organized in the field, Solinst
offers two types of convenient Field Tables to use in any of your
environmental monitoring applications.
Both are compact and easy to transport and come with their
own carry bag. The Field Tables are useful for keeping your
instruments off the ground and provide a clean, dry, sturdy, and
flat surface to deploy and store your field tools on.
Solinst offers a Well-mount Field Table as well as a Stand-alone
Field Table to suit your different monitoring application needs.
They are handy field accessories that can be added to any Solinst
equipment order and shipped right to your site if needed.
Well-mount Field Table

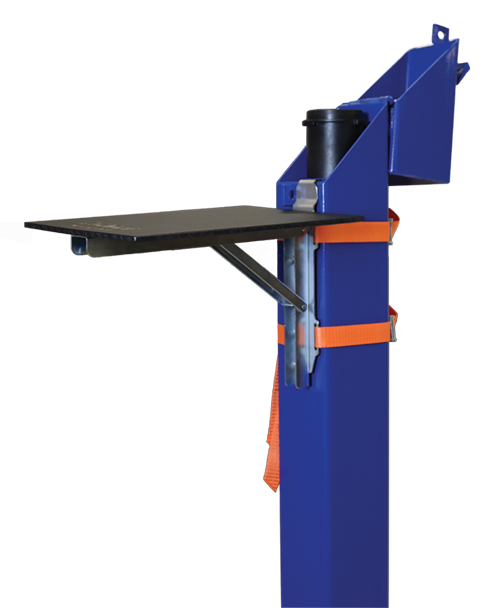

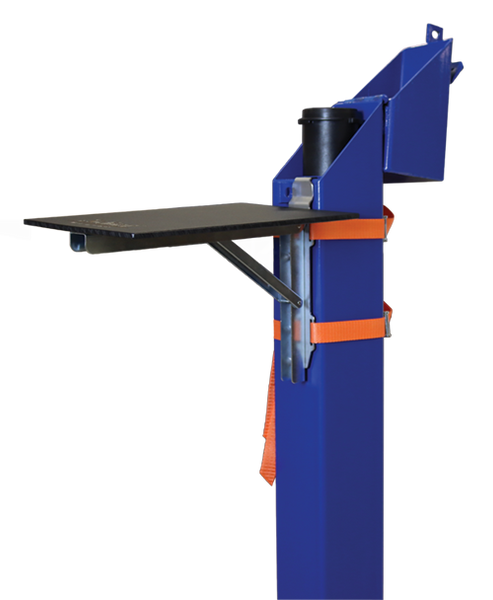

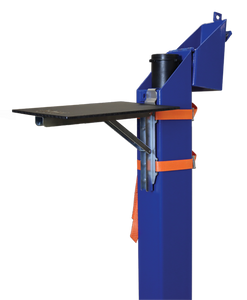

The Well-mount Field Table connects to the top of a standard
groundwater monitoring well, so the equipment you are using
is right where you need it – it’s like an extra “hand” in the field.
The Well-mount Field Table uses a folding bracket that hooks onto
the top of the well casing, or enclosure, and is then supported
by the side of the well. It is secured in place by tightening the
two adjustable straps around the well or enclosure. It is ideal for
standard groundwater monitoring wells 2" diameter and larger.
The tabletop is 20.3 cm x 30.5 cm (8" x 12") in size, which is
ideal for supporting manual water level measuring instruments
such as Water Level Meters, Interface Meters, TLC Meters or
other Solinst devices. It also provides a convenient surface to
write down measurements in your field book.
The Well-mount Field Table can support for your laptop when
viewing real-time readings or programming your Levelogger
water level dataloggers. You can also rest your smart device on
the field table while using the Solinst Levelogger 5 App Interface.
The high density polyethylene tabletop and stainless steel
support bracket are rugged and constructed for field use. The
adjustable straps are made from tough nylon and will hold up
with repeated use. The Well-mount Field Table is lightweight

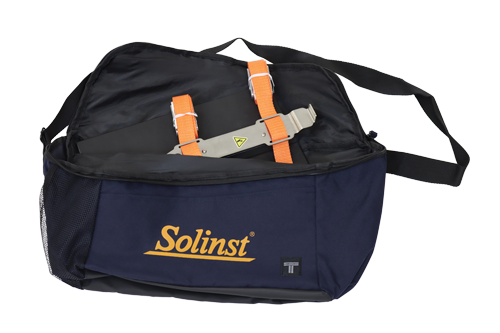

(1.3 kg (2.9 lbs)) and comes in a custom Solinst Field Accessories
Bag that is padded and has extra compartments to store other
field gear. When folded and in the bag, the Field Table measures
less than 45.7 cm x 30.5 cm x 7.6 cm (18" x 12" x 3").
Well-mount Field Table Features
• Connects to standard groundwater monitoring wells
• Quick and easy to deploy for an extra “hand” in the field
• Durable tabletop, support bracket and straps will stand
up with repeated field use
• Compact, lightweight and comes in a convenient
carry bag that can hold other field gear
• Provides support for water level measurement devices,
laptop, field notebook, etc.
