Stainless Steel Vapor Pin® Sampling Device
Stainless Steel Vapor Pin® Sampling Device
Stainless Steel Vapor Pin® Sampling Device
Vapor Pin

Stainless Steel Vapor Pin® Sampling Device

Regular price $40.00 Unit price per
Shipping calculated at checkout.

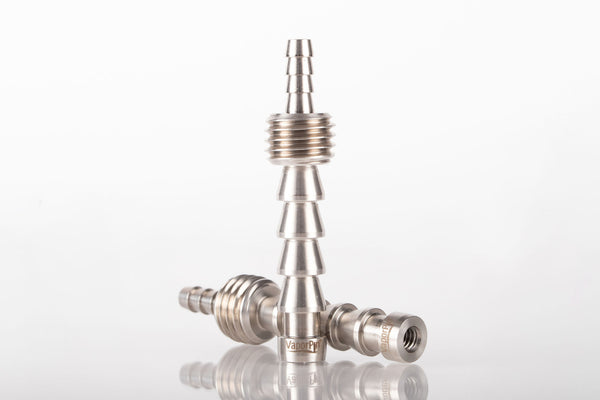

The Stainless Steel Vapor Pin® Sampling Device connects to ¼-inch sample tubing (typically Nylon or Teflon®) with softer tubing, preferably Tygon®. Because stainless steel is more durable than brass and more corrosion resistant, we recommend stainless steel for long-term installations and in corrosive environments. Brass Vapor Pin® devices are less durable than stainless steel, but they can be reused repeatedly with proper care. We recommend brass Vapor Pin® devices for short-term installations, especially those installed in the stick-up configuration. Total length 3 1/2". Top barbed fitting is quarter inch in diameter.

This item can not be installed without the Installation/Extraction Tool  or Silicone Sleeves. and the protective white caps.



Length: 3.22”
ID: 0.13
Material: Stainless Steel
Weight: .15Lb


Brass Vapor Pin® Info

Length: 3.22”
ID: 0.13
Material: Brass
Weight: .15Lb


FLX-VP INFO

Length 3.22”
ID 0.13
Material Stainless Steel
Weight .15Lb


Sleeve Info

Height 1.57”
OD .625”
ID .375”
Material Silicone

Cap Info

Height .669”
OD .354”
ID .275”
Material Silicone

Tygon Connector Info

Length 1″
OD .312”
ID .187”
