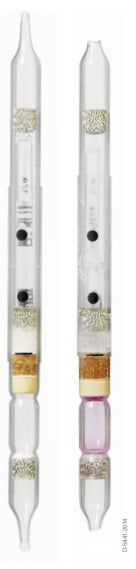

Sulphuric Acid 1/a, 1 - 5 mg/m3, (6728781)
Sulphuric Acid 1/a, 1 - 5 mg/m3, Part #6728781, 9 Tests
Standard Measuring Range: 1 to 5 mg/m3 Discoloration compared to color comparison tube.
Number of Strokes n: 100
Time for Measurement: approx. 100 min
Standard Deviation: ± 30 %
Color Change: brown pink violet
Ambient Operating Conditions
Temperature: 5 to 40 °C
Absolute Humidity: < 15 mg H2O / L
H2SO4 + barium chloroanilate chloranilic acid + Ba2 SO4
Sulfur trioxide in the gaseous form is not indicated, but in the presence of atmospheric humidity this forms sulfuric acid aerosols, which are indicated. Soluble sulfates and other aerosol forming acids are also indicated but with different sensitivities. It is impossible to measure sulfuric acid in the presence of these substances.
After performing the required 100 pump strokes the reagent ampoule must be broken and the liquid transferred completely onto the brown reagent layer. Wait one minute before drawing the liquid carefully through the brown layer with approx. 1 ⁄ 4 pump stroke into the indication chamber. The measurement must be evaluated immediately.
