Portable Mechanical Advantage

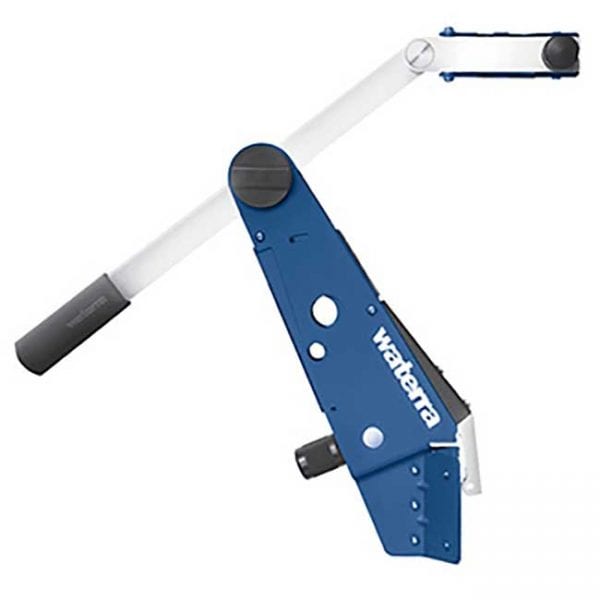

The Waterra Lever Arm – Tubing Actuator is a manual lever designed to provide operators with a convenient, portable mechanism which would provide some mechanical advantage when manually operating the Waterra Pump as well as facilitating the collection of samples with this system.
This Tubing Actuator will fasten onto most above ground well completions quickly and easily. The tubing clamp is designed to accept Low Flow, Standard Flow and High Flow tubing. The handle is adjustable in order to accommodate various casing diameters and desired stroke lengths.
The Lever Arm weighs approximately 8 pounds (3.6 kg).
This Tubing Actuator is the best choice for the occasional light duty user of the Waterra Pumping System (Low, Standard, and High Flow).
The Lever Arm is fully adjustable and will adapt to almost any size casing or protective well casing. An above ground well completion is required in order to use the Lever.
One handed operation
Using the Lever Arm can make sample collection easier because it supports the discharge end of the pump’s tubing, allowing the field technician to operate the Waterra Pump with one hand and hold a sample container with the other.
Hinged tubing clamp
The tubing clamp is hinged, which helps prevent pump tubing from abrading against well casing.
This hand Lever can reduce some of the fatigue that one may experience when required to purge large volumes from wells.
- Suitable for use with Low, Standard and High Flow Waterra Pumping Systems
- Adapts to almost any size casing or protective well casing
